• form factor
• M-ATX

• chipset
• AMD A320

• CPU
• AM4 socket, supports AMD Ryzen CPU/APU（100W TDP）

• memory
• support dual channel DDR4 2133/2400MHz memory（OCable）

• LAN
• Realtek RTL8111F 1000M LAN chip

• onboard graphics
• onboard graphics on CPU (APU only)

expansion slots

• storage interface

• 4*SATA3.0，1*M.2(SATA3.0/PCI-E standard)

• PCI-E slots

• 1*PCI-E  1*PCI-E X1*

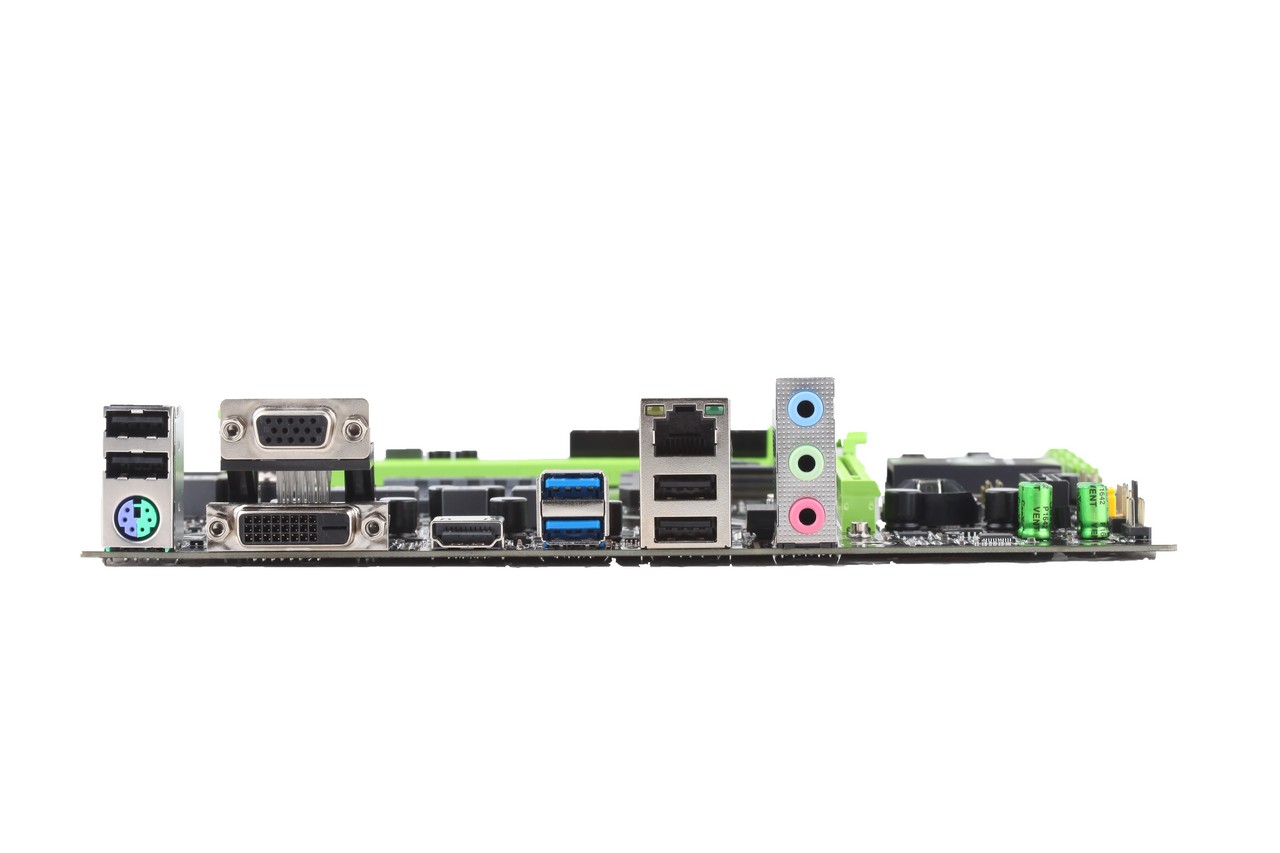

I/O connectors

• PS/2
• 1 port, keyboard&mouse

• USB connectors
• 2* USB3.1；2* USB3.0 ；2*USB2.0

• audio jacks
• 6 channels support

• video interface
• VGA、DVI、HDMI

• expansion ports
• 4*USB2.0，2*USB3.0

other specs

• power connector
• 24 + 8pin

• features
• 1* M.2 high speed connector，1*PCI-E X16 high speed slot，dual channel DDR4 memory，5 ways high level audio optimization, 6 power phases，full ESD protection desigh，high quality heatsink

• accessories

• manual, CD driver, SATA cable, back plate
