• form factor
• Micro-ATX

• chipset
• Intel B250

• CPU
• sixth, seventh generation Core i7/i5/i3/Pentium/Celeron（TDP:100W）

• memory

• dual channel DDR4，2400/2133MHz memory (2400MHz memory can be used with seventh generation CPU only)

• LAN
• Realtek RTL8111F 1000Mbit LAN chip

• onboard graphics
• onboard graphics on CPU (CPU supports)

expansion slots

• storage interface

• 4*SATA3.0，1*M.2(SATA3.0/PCI-E standard)

• PCI-E slots
• 1*PCI-E  2* PCI-E X1

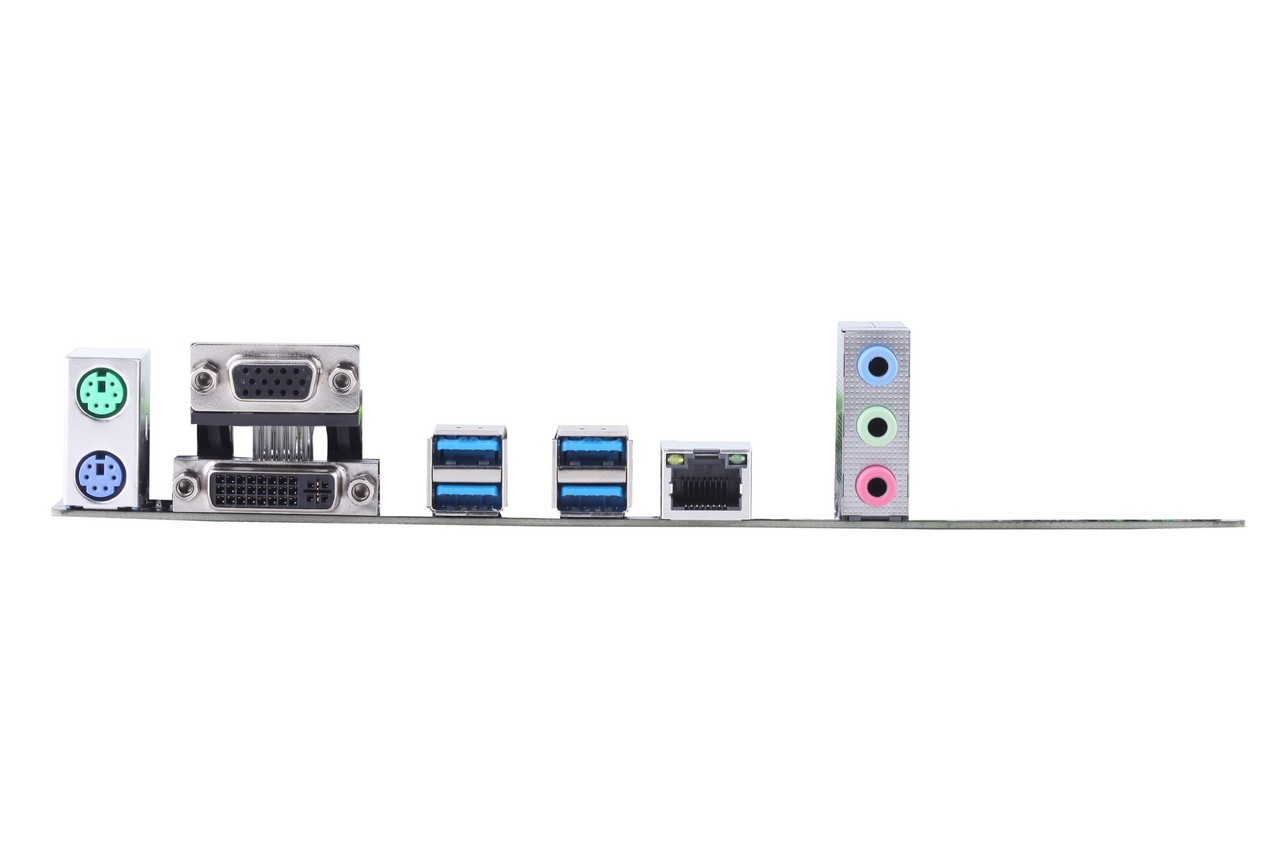

I/O connectors

• PS/2
• 1 port (keyboard & mouse)

• USB connectors

• 6*USB3.0(2*front, 4*back), 4*USB2.0(4*front)

• audio jacks
• 6 channels support

• video interface
• VGA、DVI

• expansion ports
• 4个USB2.0，2个USB3.0

other specs

• power connector
• 24+4pin

• features

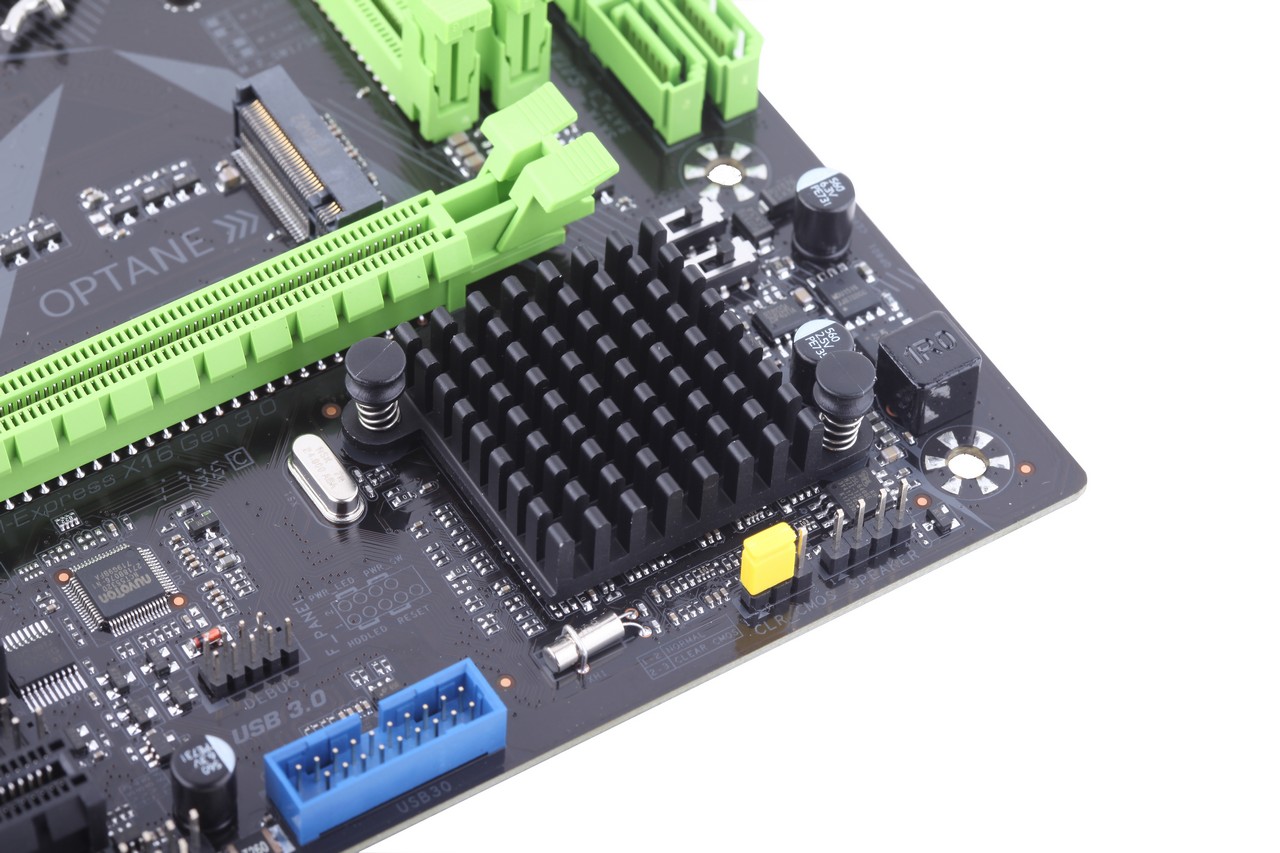

• M-ATX form factor design, fog-like black PCB with high quality heat sink， support Optane,  PCI-E X16 slot, 1000M LAN, audio optimization

• accessories
• manual, CD driver, SATA cable, back plate
•
