Basic parameters
Displays the core
NVIDIA GeForce RTX 3070
The architectural model
Ampere
The core code
GA104
Core process
8nm
Stream processor
5888
Core frequency
1500MHz
Core dynamic acceleration frequency
1770MHz
The memory frequency
14000MHz
The memory capacity
8GB
The type of memory
GDDR6
The memory bit is wide
256bit
The bus interface type
PCI Express X16 4.0

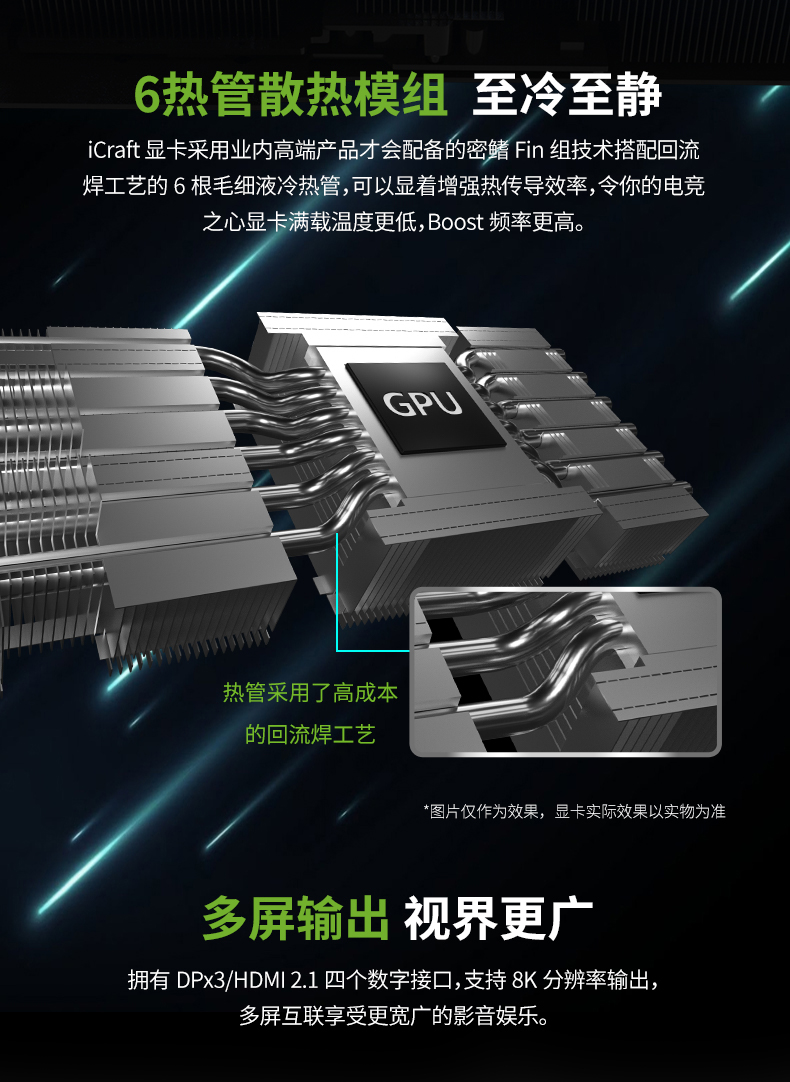

How to dissipate heat
Next-generation iCraft cooling system

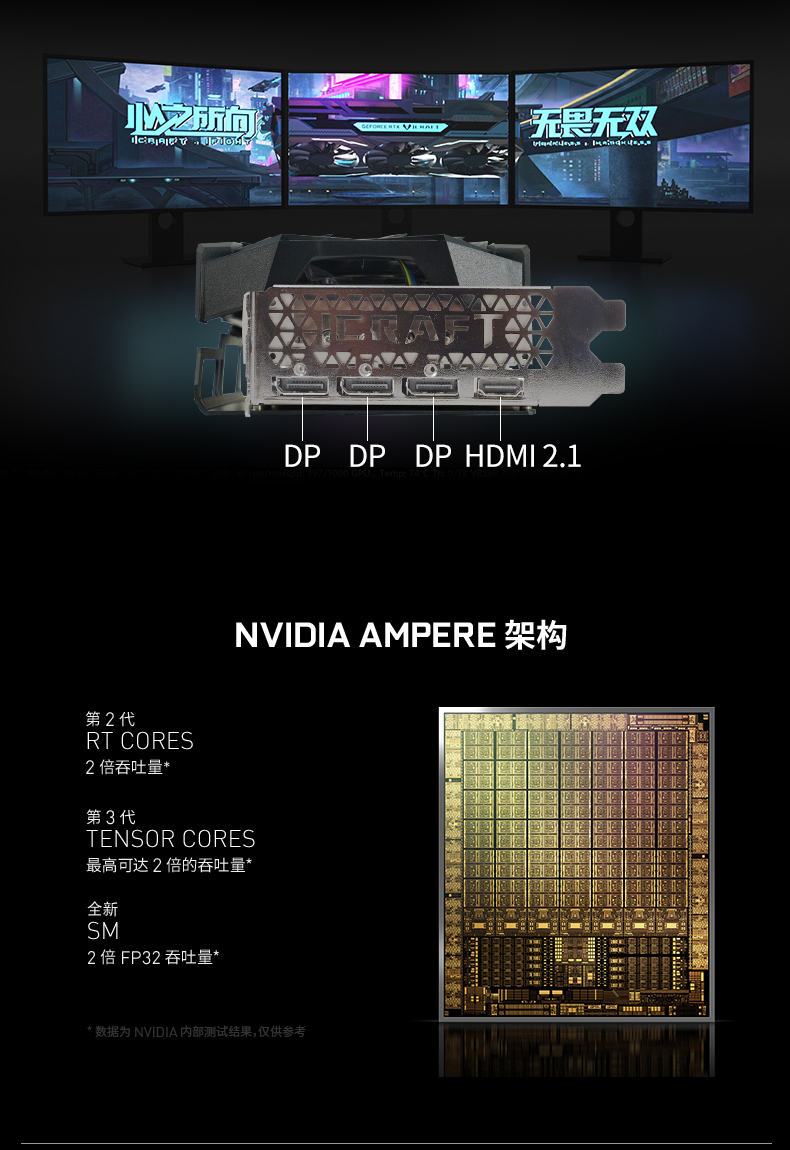

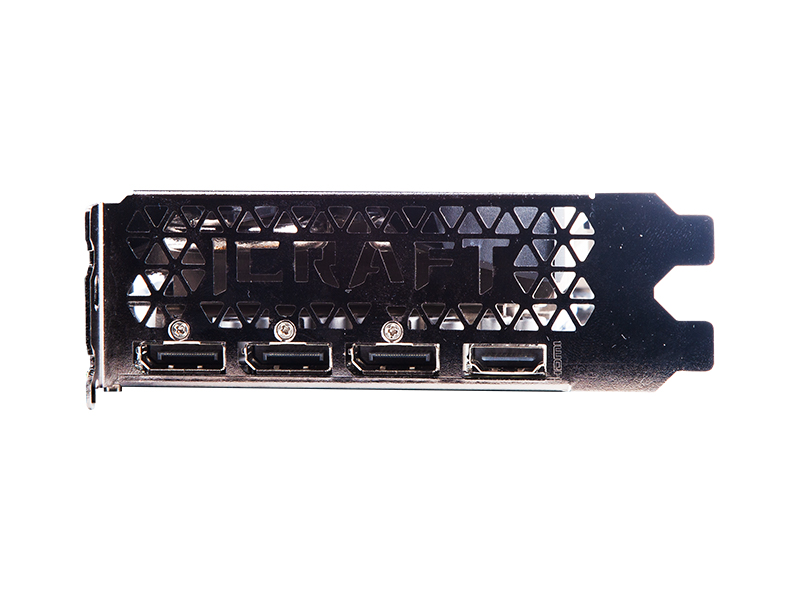

The interface is displayed
DP*3/HDMI
Maximum resolution
7680x4320 Pixel DisplayPort resolution
External power supply
Power supply is 2 x 8Pin
Tdp
More than 240W
Recommended power supply
More than 650W
3D API
DirectX 12, Shader Model 5.0, OpenGL 4.5
System requirements
Windows 10
Graphics card size
317*124*53(mm)
Features
Support for Simultaneous Multi-ProjectionVR image correction technology, VRWorks Audio virtual reality audio technology, Ansel screenshot function, PhysX physical acceleration technology, NVIDIA CUDA, NVIDIA REFLEX, PureVideo HD HD hardware decoding, Dynamic Super Resolution, MFAA, GeForce 3D Vision, GameWorks ™, G-Sync™-Ready, GameStream™-Ready, GeForce ShadowPlay™, GPU Boost ™
