Basic parameters
Displays the core
NVIDIA GeForce RTX 3060 Ti
The architectural model
Ampere
The core code
GA104
Core process
8nm
Stream processor
4864
Core frequency
1410MHz
Core dynamic acceleration frequency
1800MHz
The memory frequency
14000MHz
The memory capacity
8GB
The type of memory
GDDR6
The memory bit is wide
256bit
The bus interface type
PCI Express X16 4.0

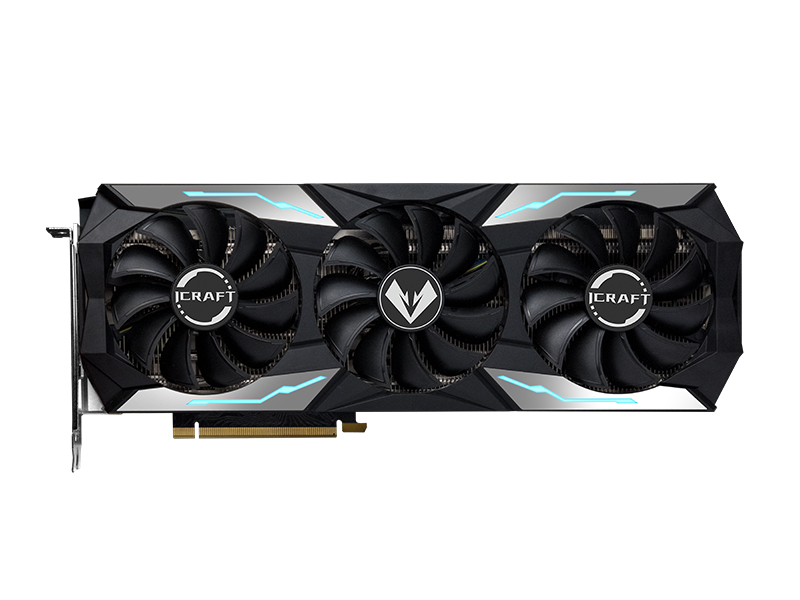

How to dissipate heat
Next-generation iCraft cooling system

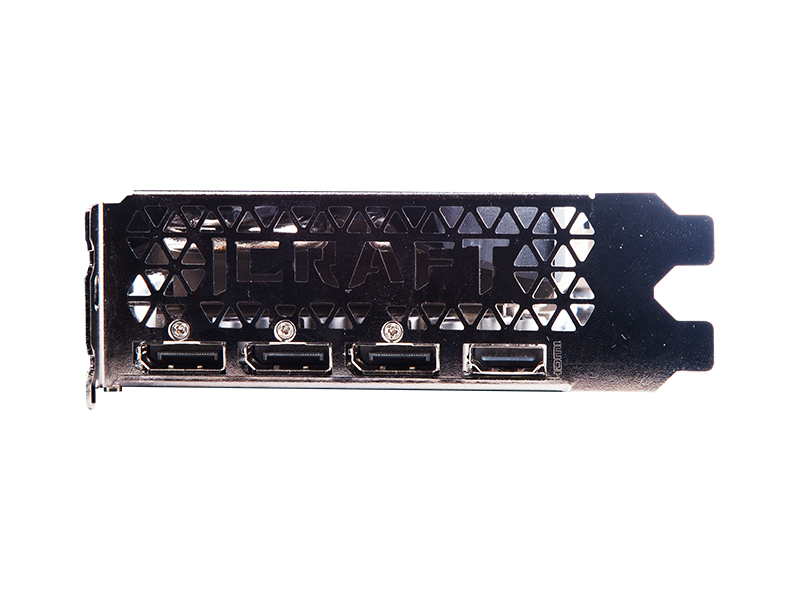

The interface is displayed
DP*3/HDMI
Maximum resolution
7680x4320 Pixel DisplayPort resolution
External power supply
Power supply is 2 x 8Pin
Tdp
More than 220W
Recommended power supply
More than 650W
3D API
DirectX 12, Shader Model 5.0, OpenGL 4.5
System requirements
Windows 10
Features
Support for Simultaneous Multi-ProjectionVR image correction technology, VRWorks Audio virtual reality audio technology, Ansel screenshot function, PhysX physical acceleration technology, NVIDIA CUDA, NVIDIA REFLEX, PureVideo HD HD hardware decoding, Dynamic Super Resolution, MFAA, GeForce 3D Vision, GameWorks ™, G-Sync™-Ready, GameStream™-Ready, GeForce ShadowPlay™, GPU Boost ™
