PRODUCT SPECIFICATIONS |

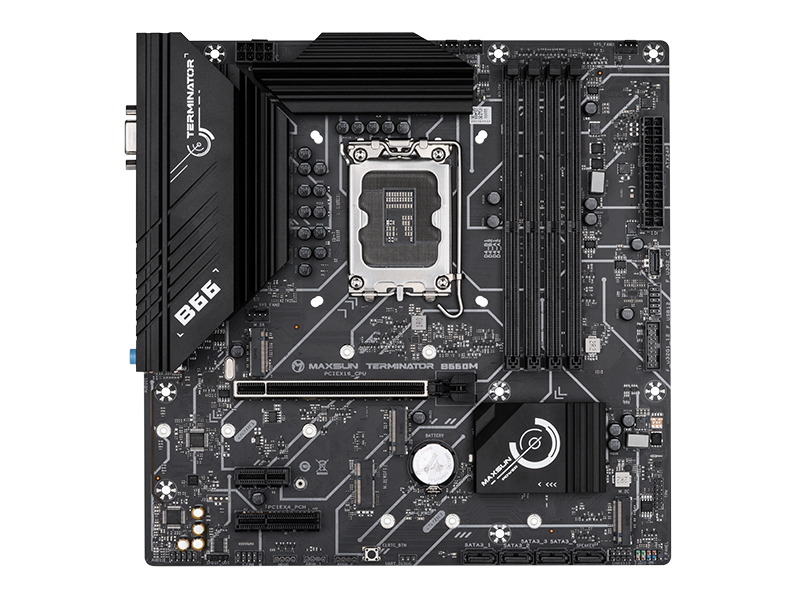

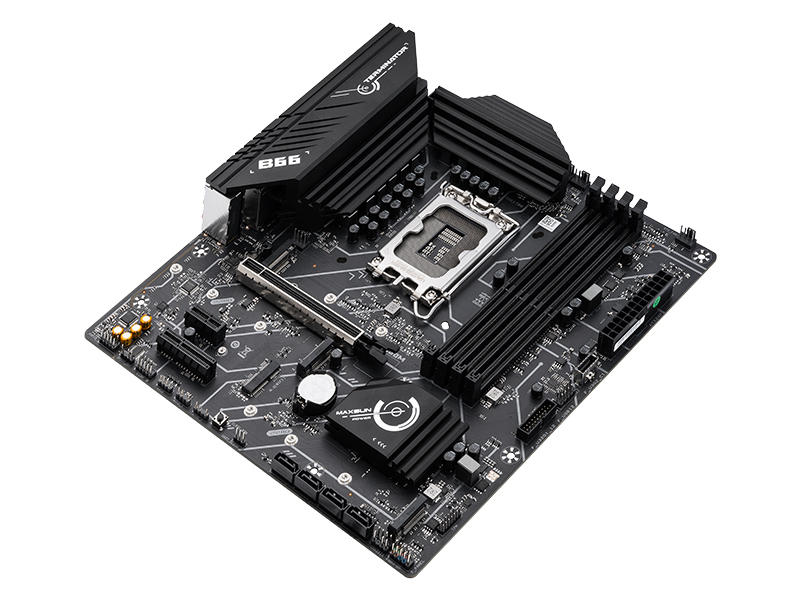

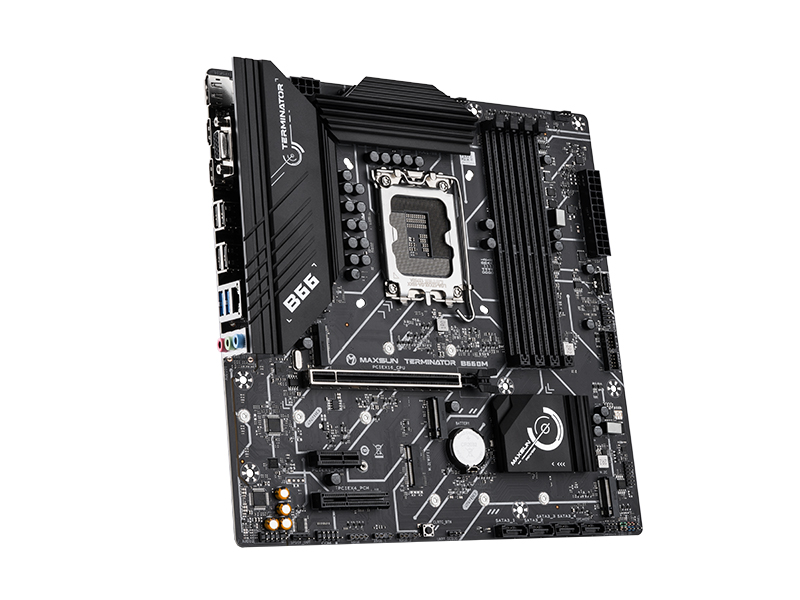

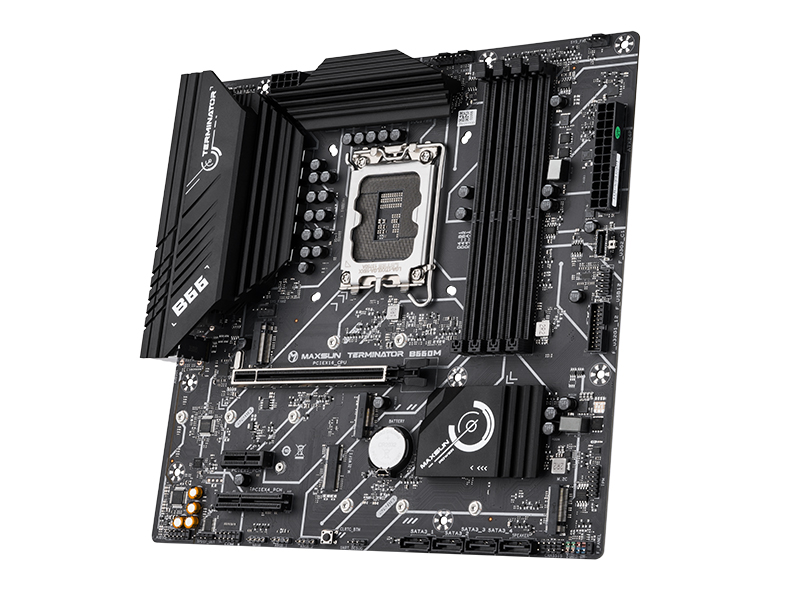

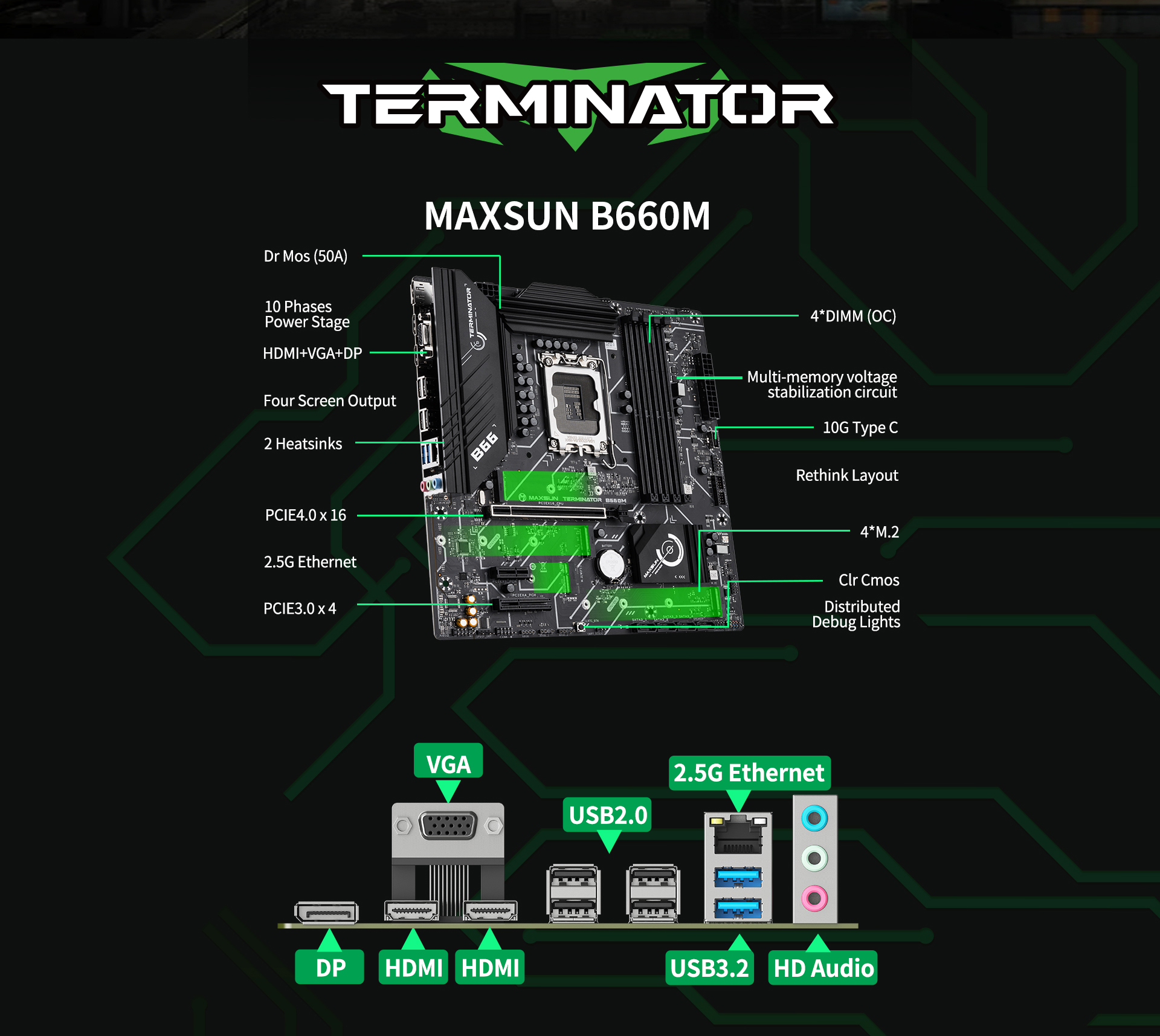

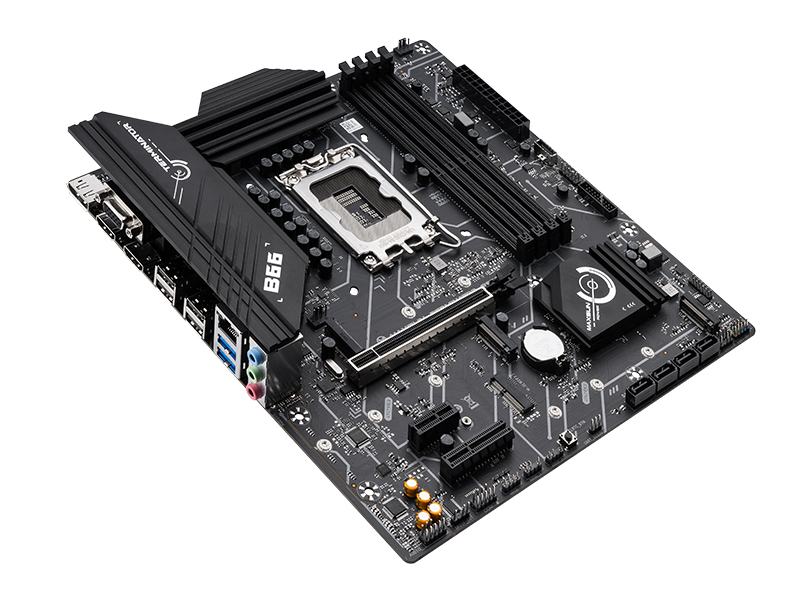

Terminator B660M |
Chipset/Socket |
Intel B660 / LGA 1700 |
Form Factor |
MATX (24.5*24.5cm) |

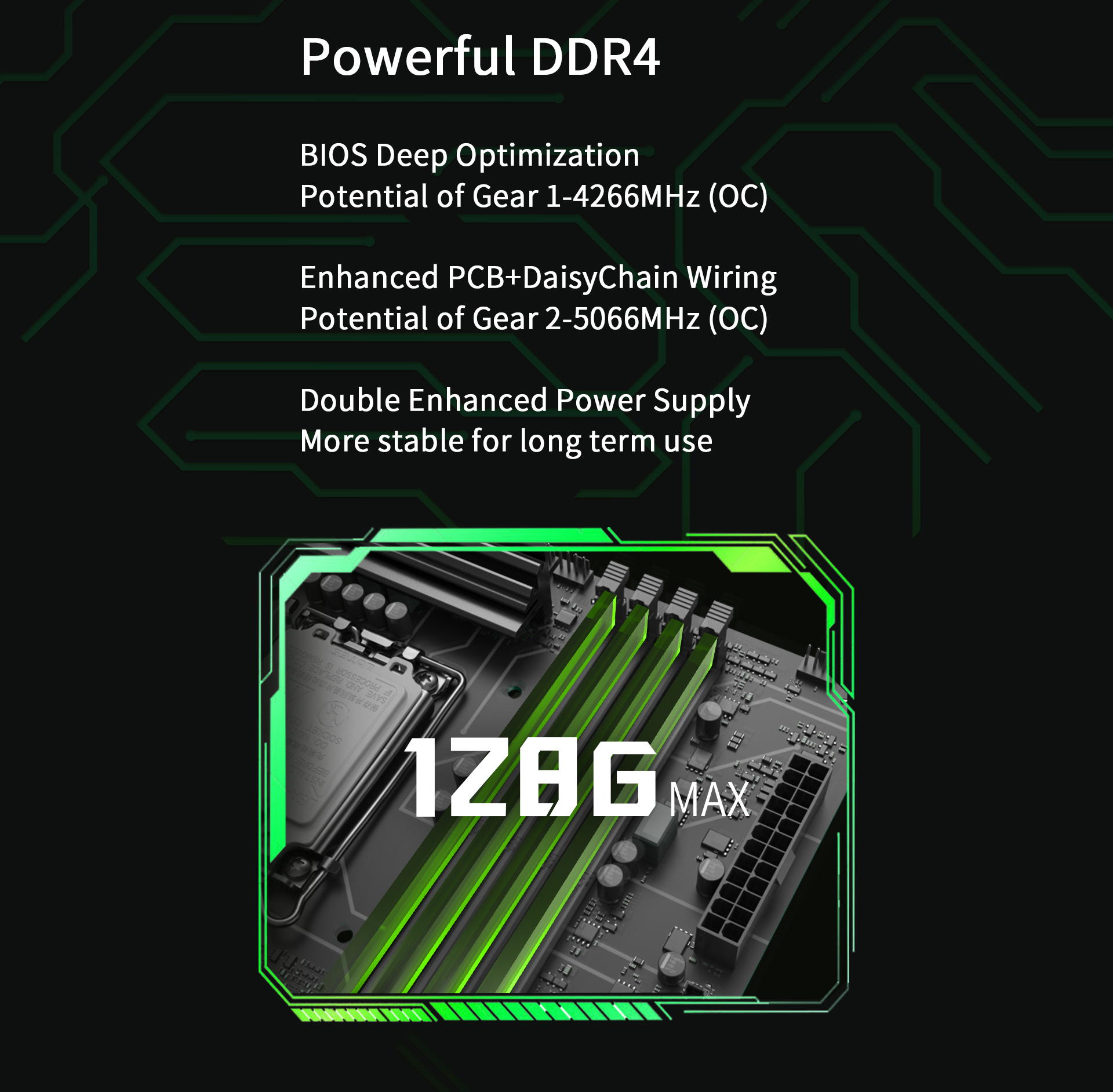

Memory Support |
4*DDR4 (Max 128G) |
PCIe |
1*PCIE4.0x16,1*PCIE3.0x1, 1*PCIE3.0*4 |

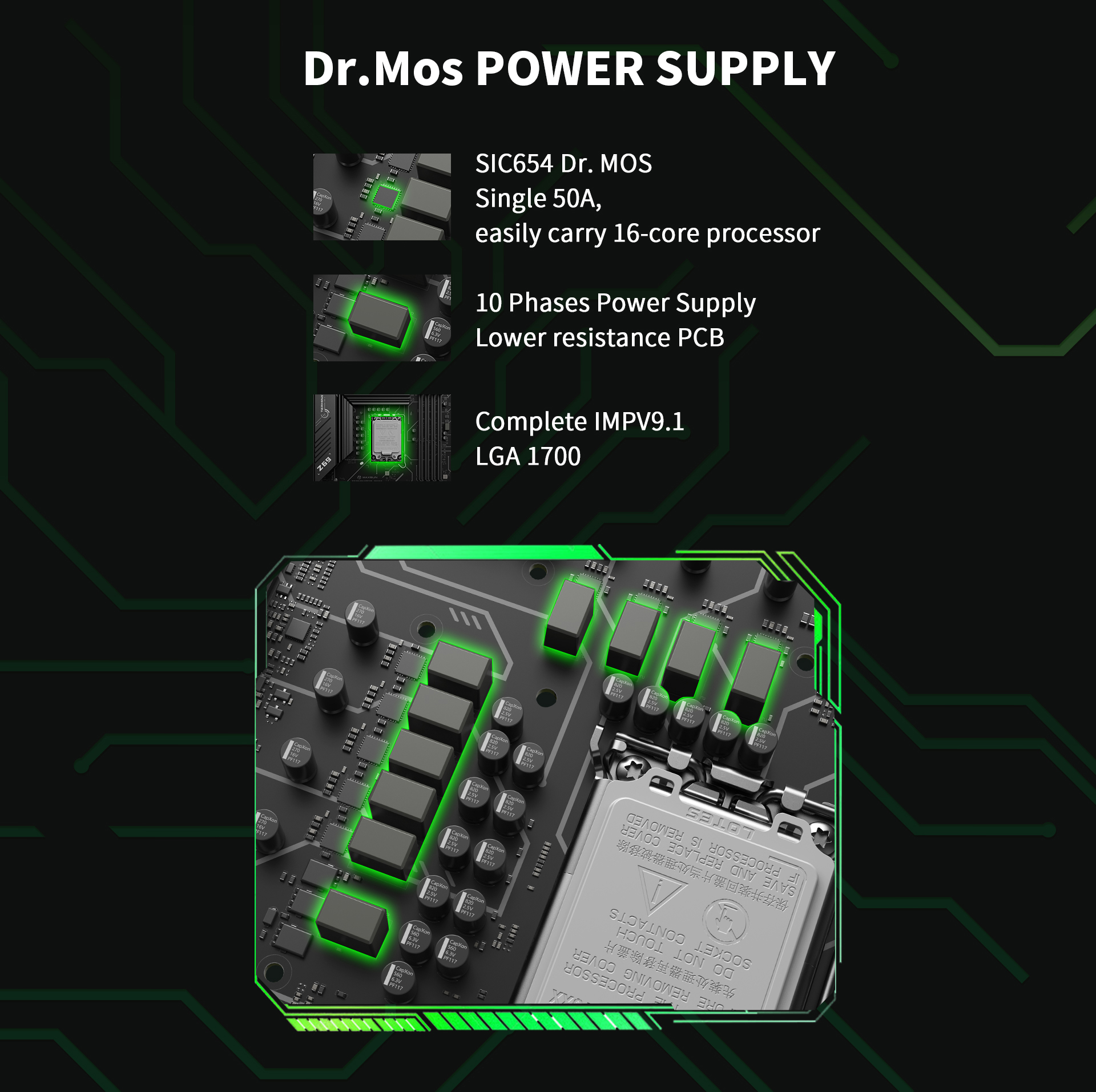

Power Support |
8+1+1 Power Stages Rated for 50A Dr.Mos |
M.2 Slots |
PCIE4.0x4(2280) PCIE3.0*4(22110) M.2 WIFI(CNVI) PCIE4.0x4(22110) |
SATA Interface |
4*SATA3(6G) |

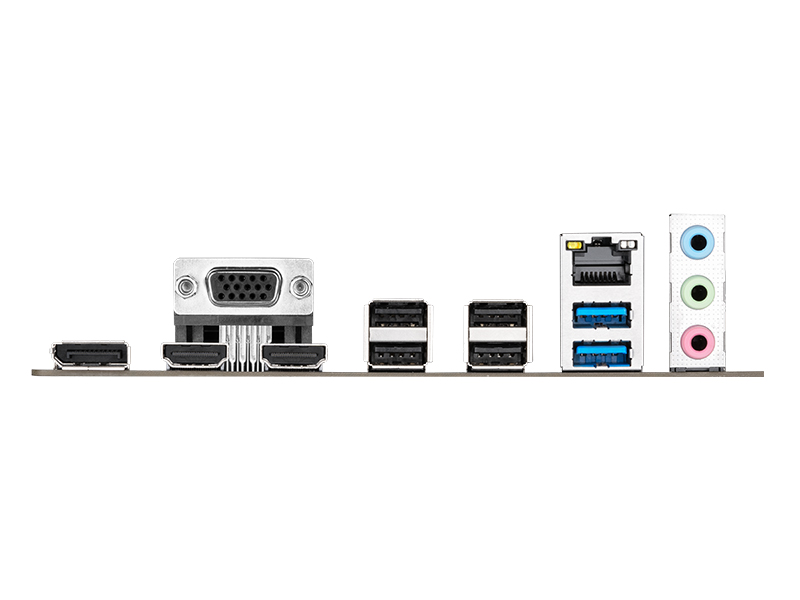

Video |
2*HDMI, DP, VGA |
USB 3.2 |
Rear:2(Type A, 5G) Front:1(Type A, 5G)+1(Type C, 10G) |
USB 2.0 |
Rear:4(Type A) Front:1(Type G) |

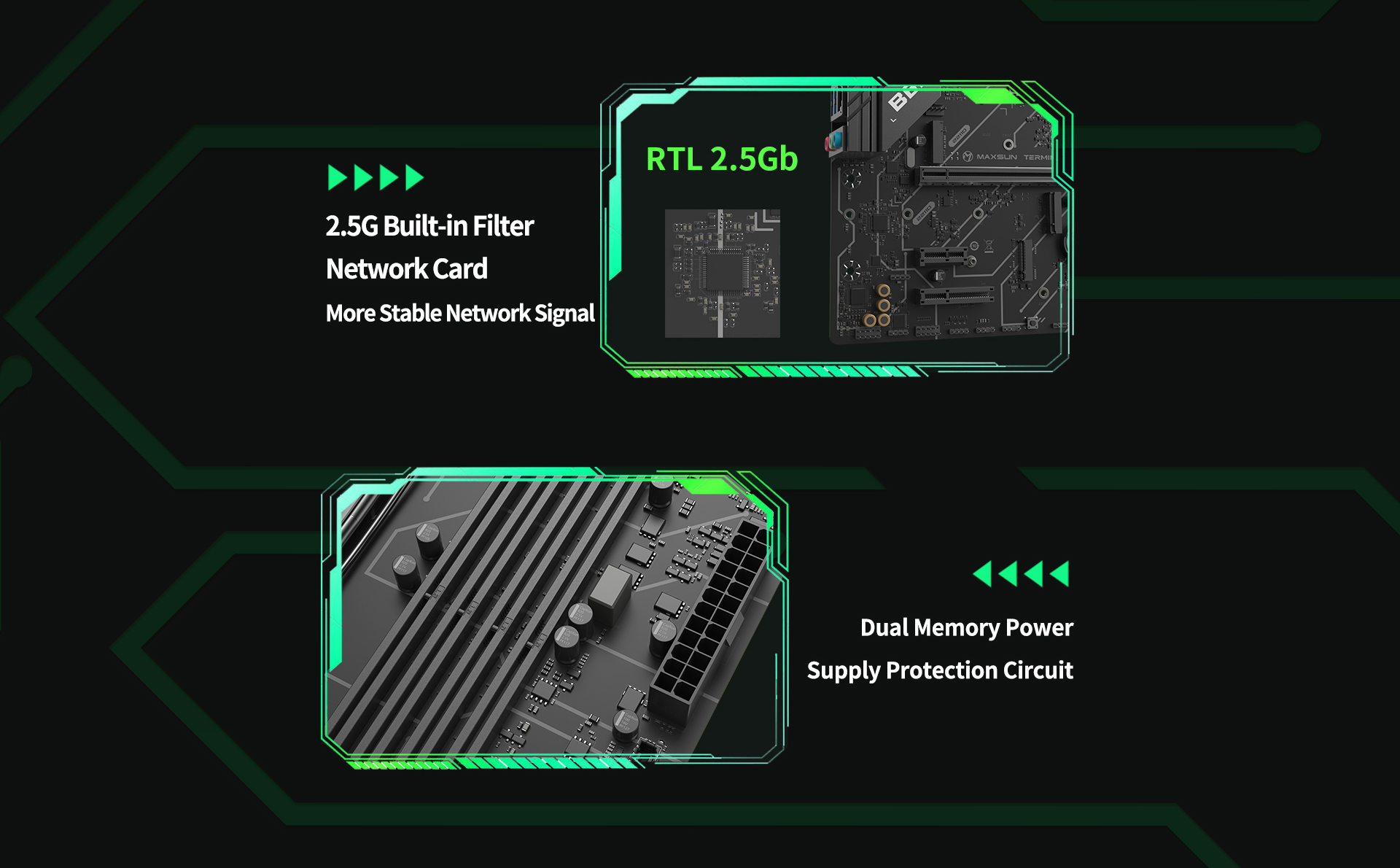

Audio/Ethernet |
5.1 Channel Sound Card/2.5G Ethernet |

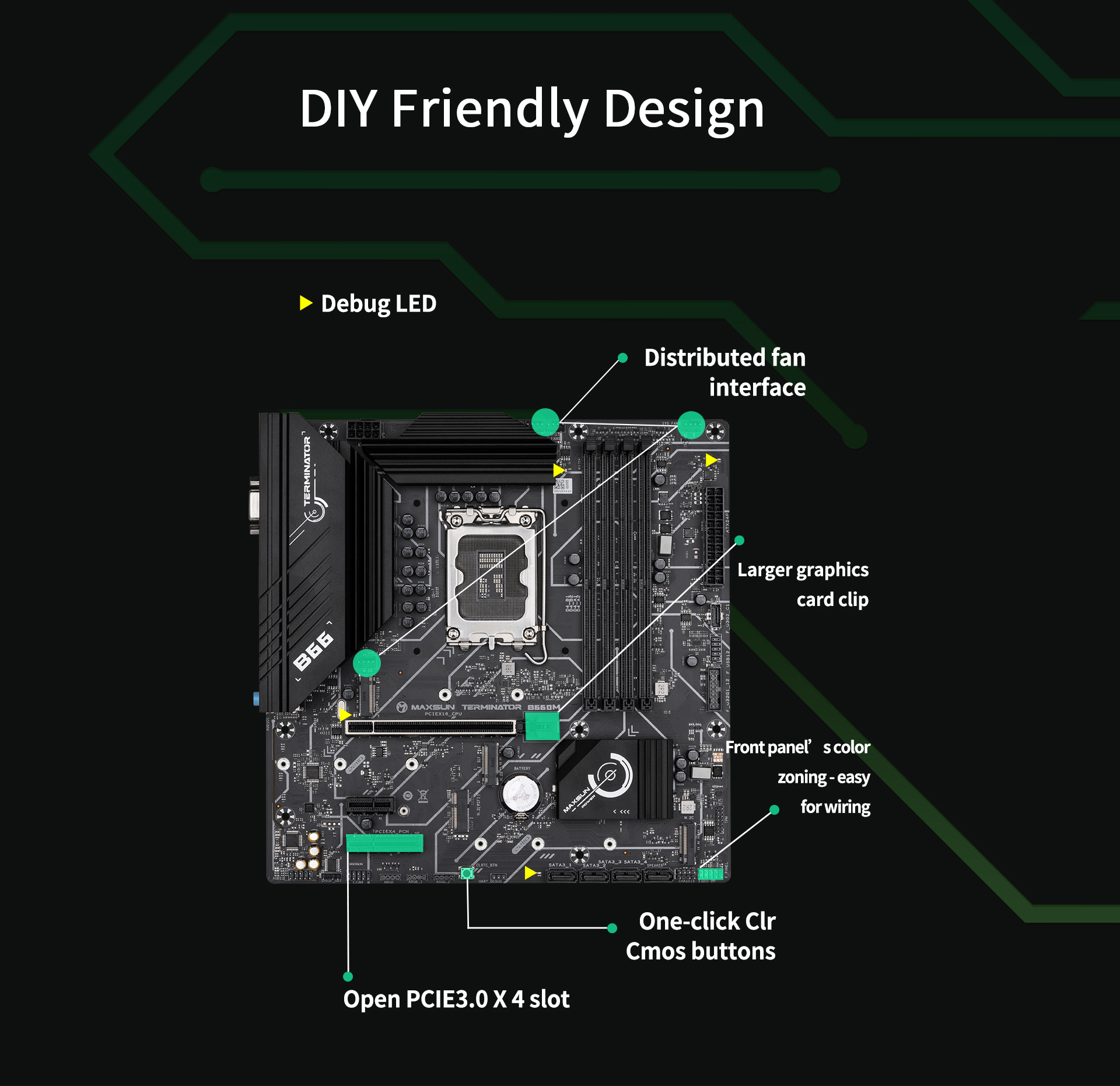

Quick Maintenance |
Debug Light&CLR CMOS |
