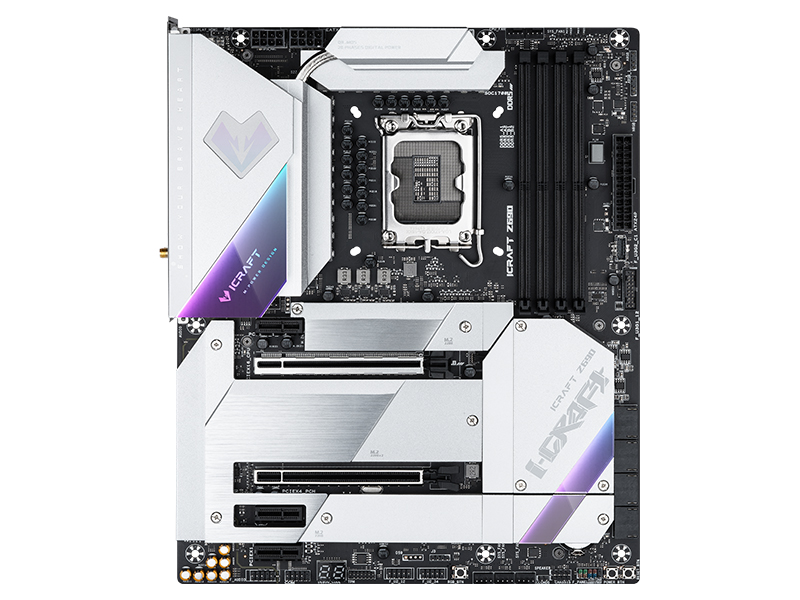

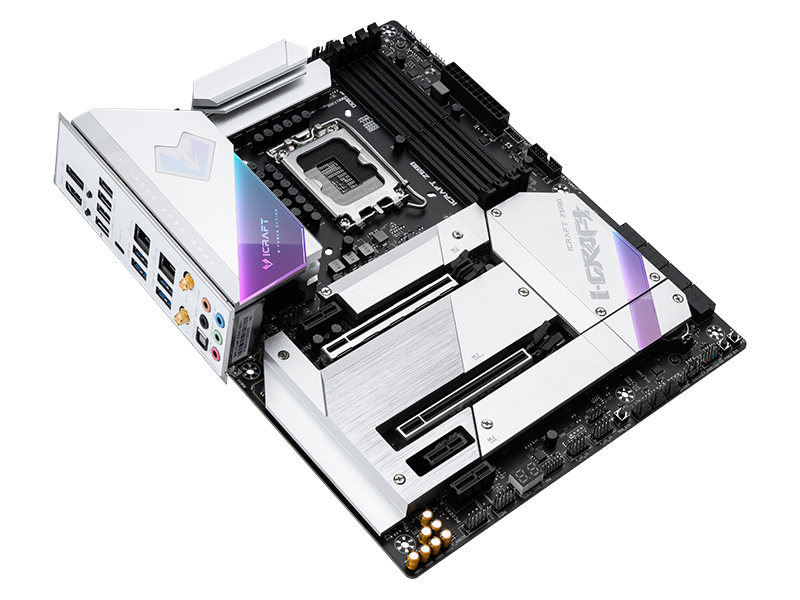

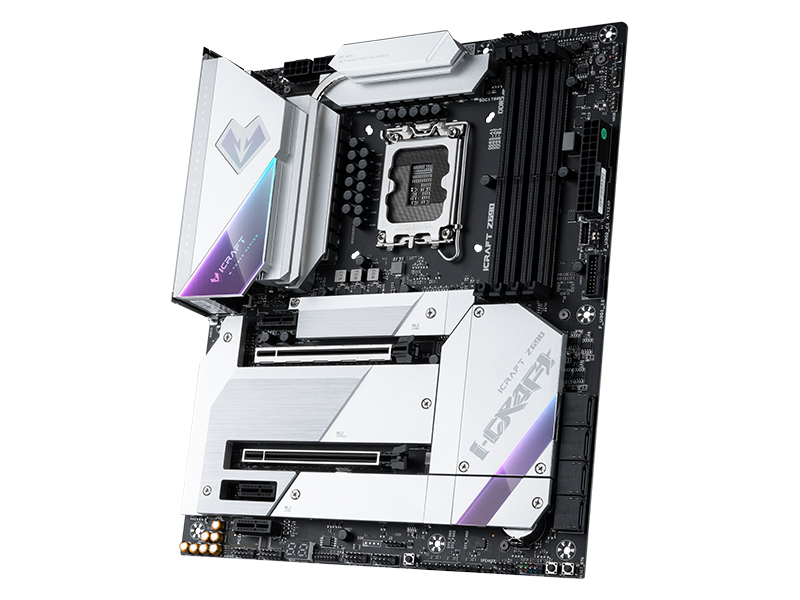

MS-iCraft Z690 WIFI

Description |Specifications |Driver/BIOS
PRODUCT SPECIFICATIONS iCraft Z690 WIFI
Chipset/Socket Intel Z690 / LGA 1700
Form Factor ATX (30.5*24.5cm)
Memory Support 4*DDR5, Overclocking:6000MHz

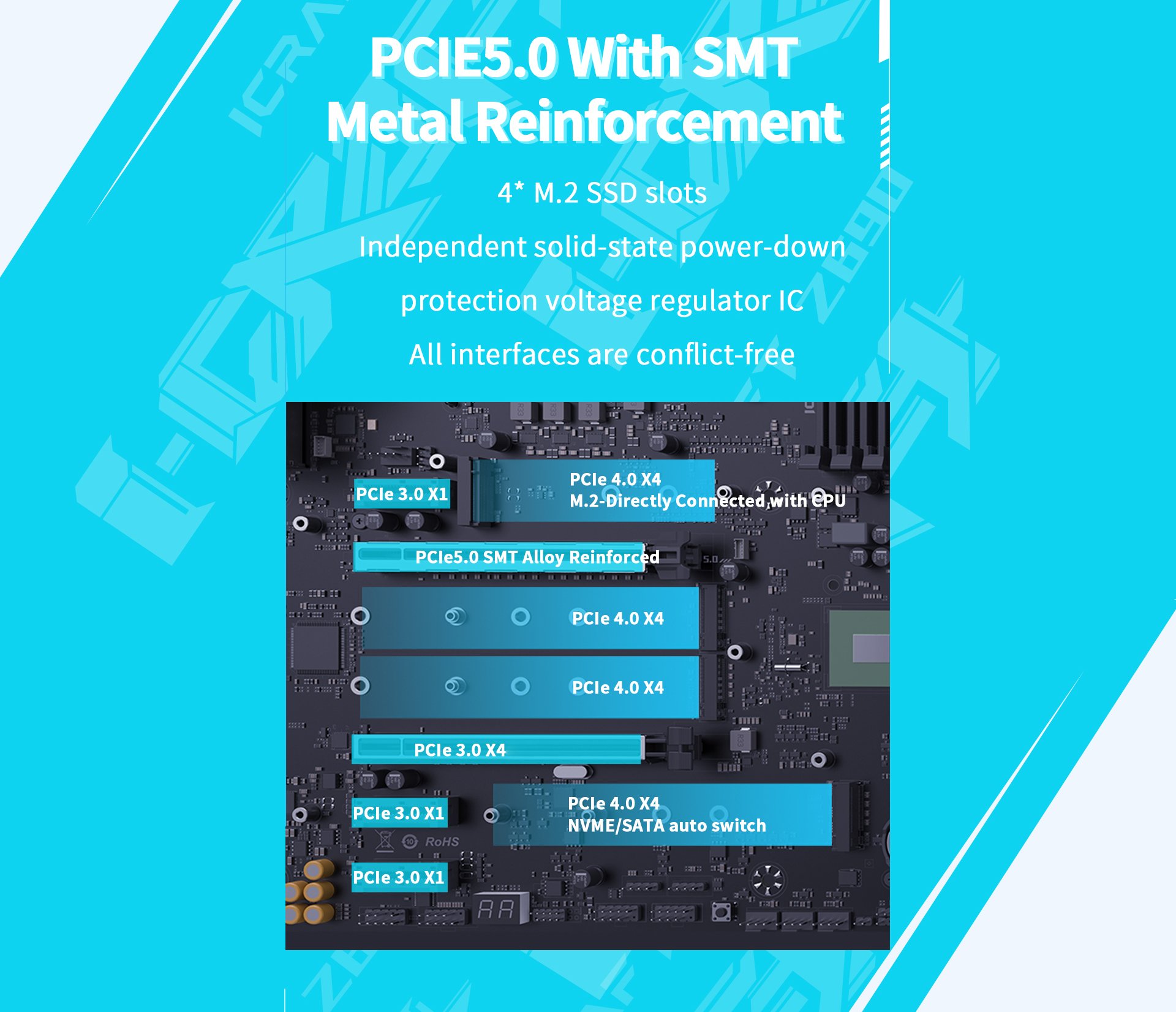

PCIe 1*PCIE5.0x16, 1*PCIE3.0x4, 3*PCIE3.0x1

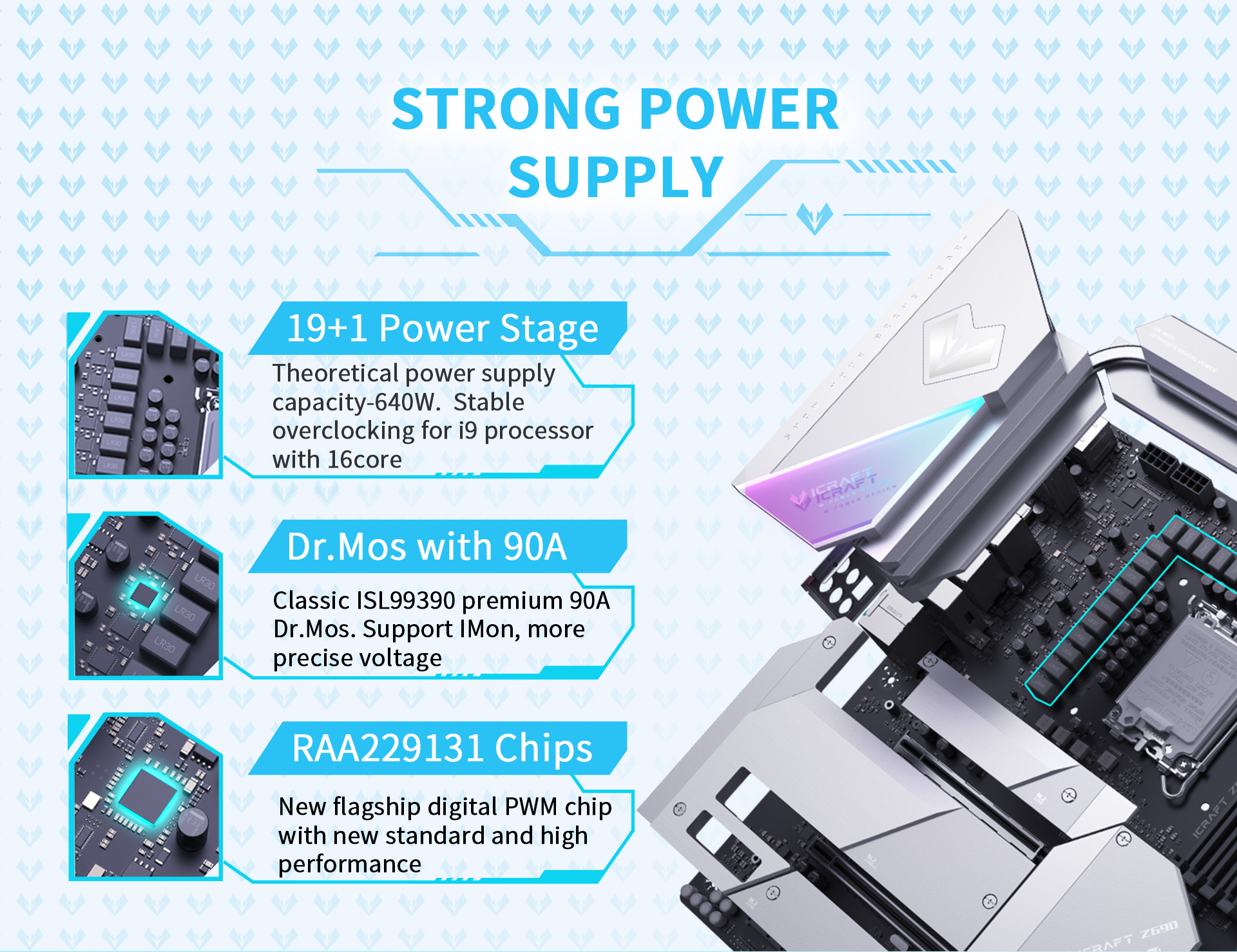

Power Support 19+1 Power Stages Rated for 90A Dr.Mos
M.2 Slots 1*PCIE4.0x4(2280), 2*PCIE4.0*4(22110), 1*PCIE4.0*4(22110,NVME/SATA Auto Switch)
SATA Interface 4*SATA3(6G)
Video  1*HDMI2.0, 1*DP1.4

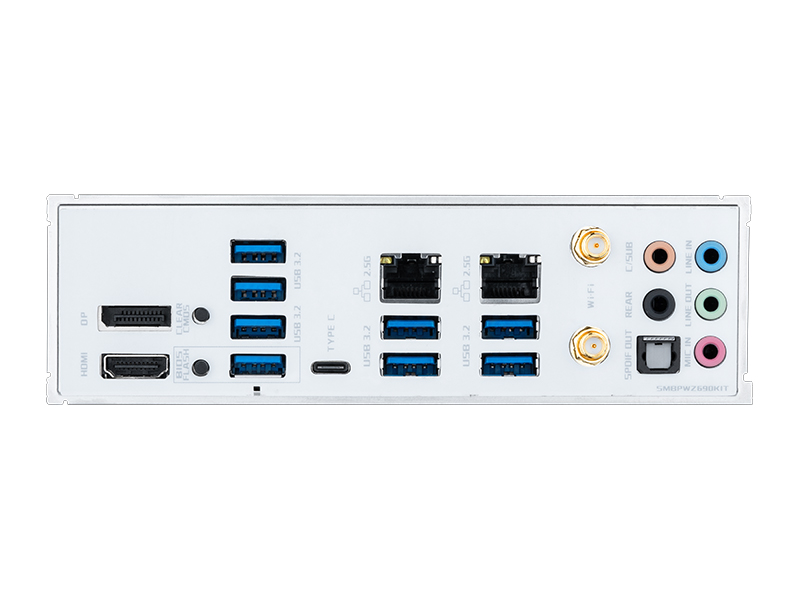

USB(rear)  8*USB3.2, 1*Type C(10G)
USB(front) 1*USB3.2, 2*USB2.0, 1*Type C(10G)

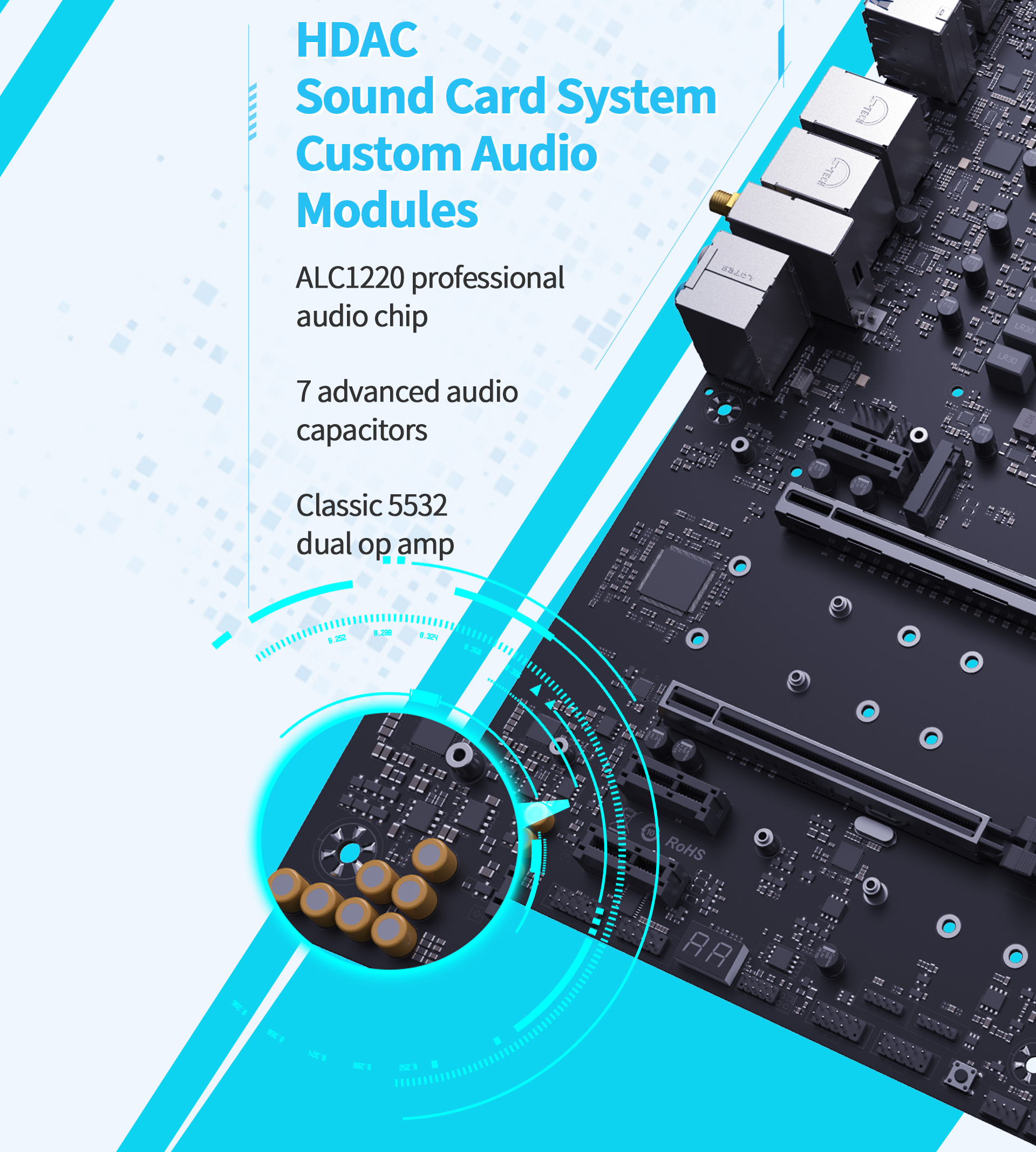

Audio/Ethernet 7.1 Channel Realtek ALC1220/Dual 2.5G Ethernet
Quick Maintenance Debug Light&CLR CMOS
RGB 2*ARGB(3Pin,5V)+1*NRGB(4Pin, 12V)

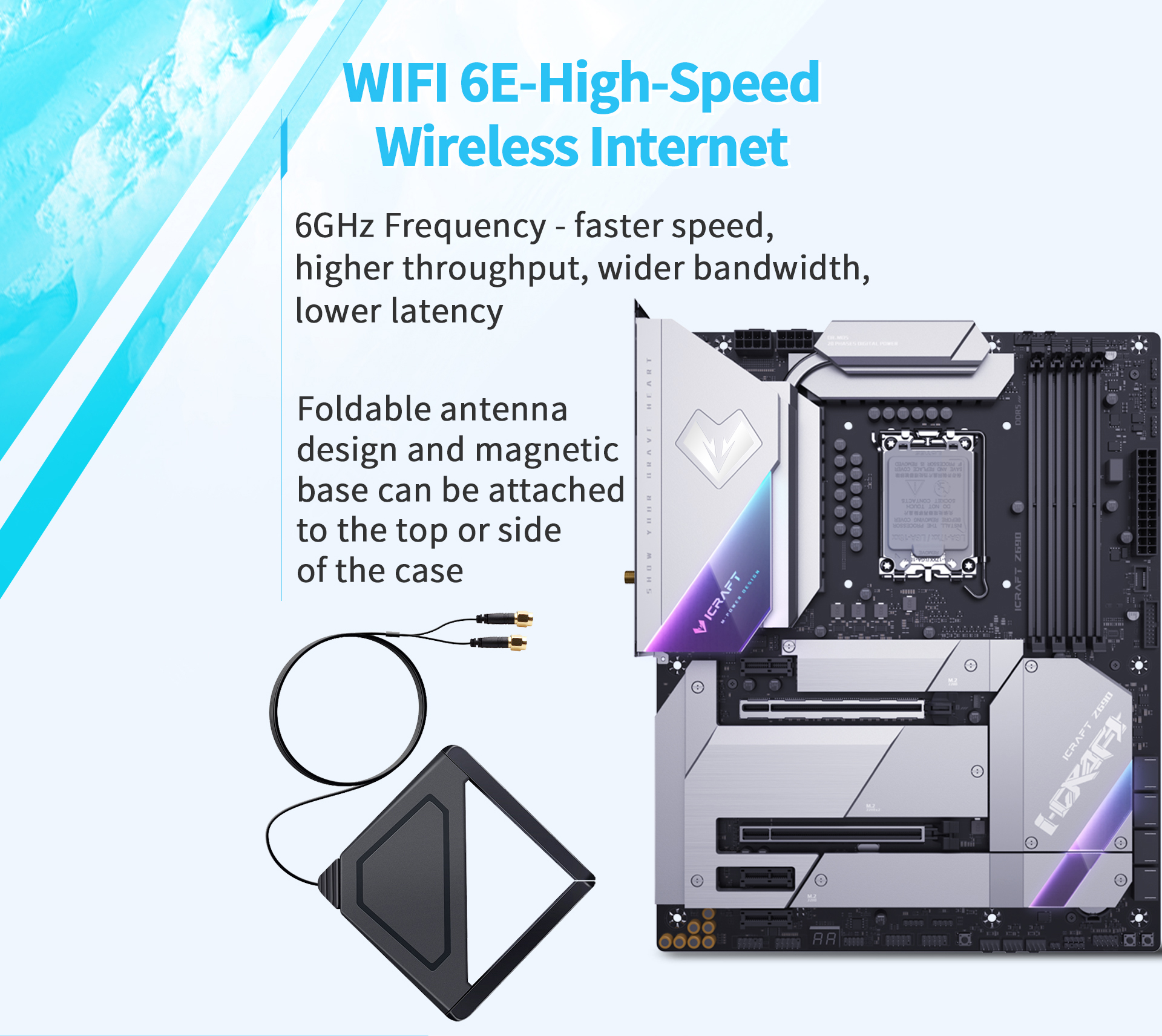

WIFI Intel AX211 WIFI6E(bluetooth 5.2)
Other Functions 6*Fan Interface(4 Pin)
