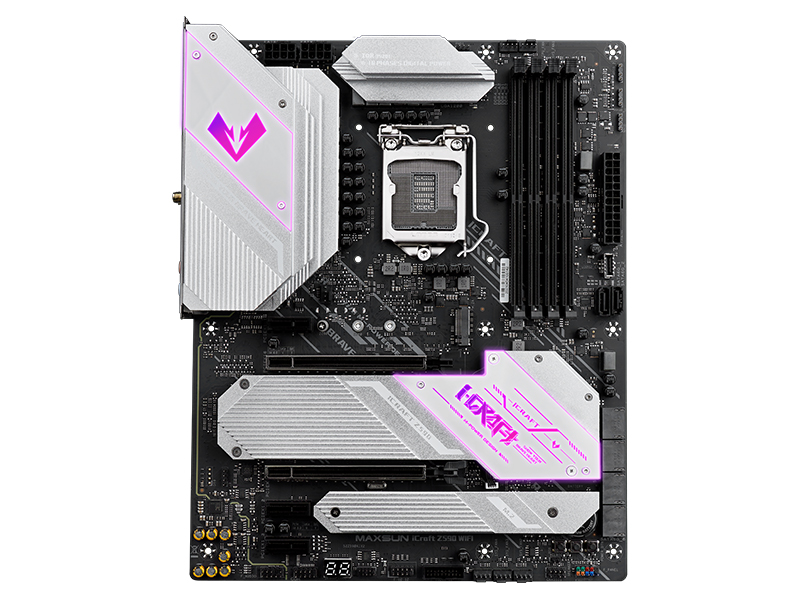

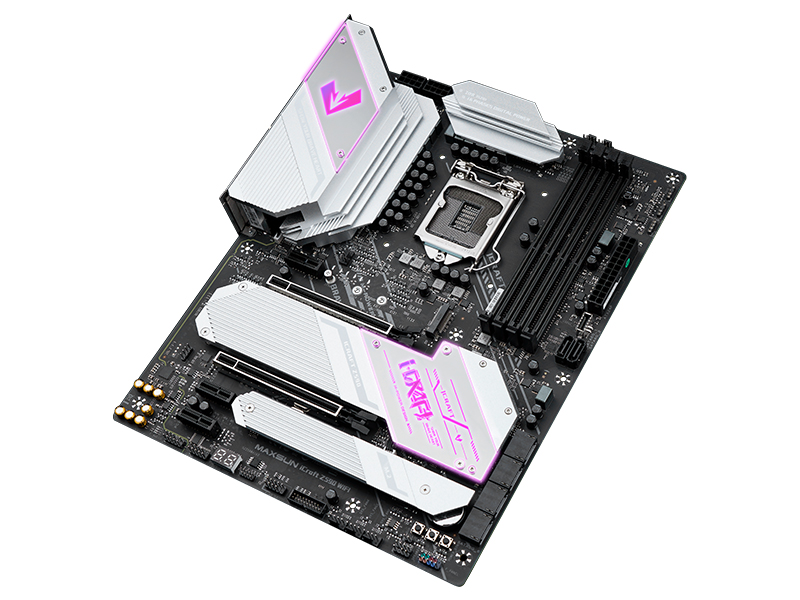

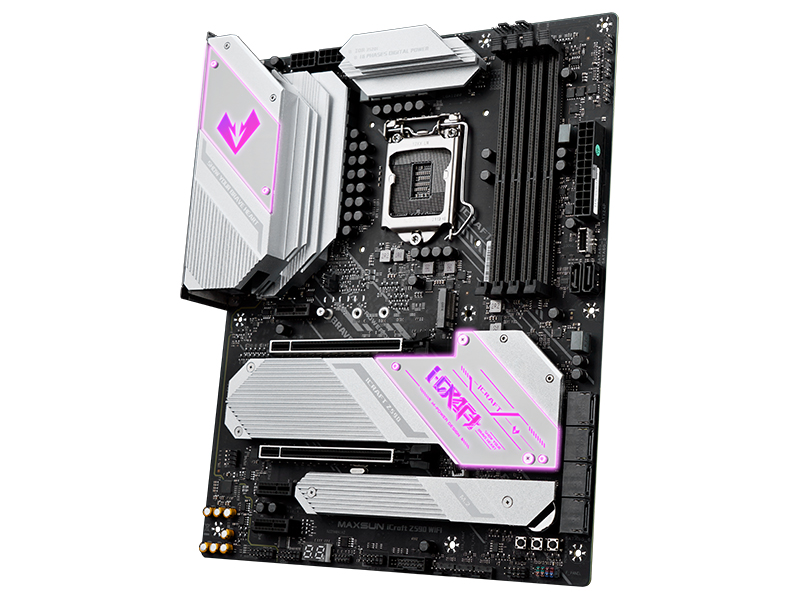

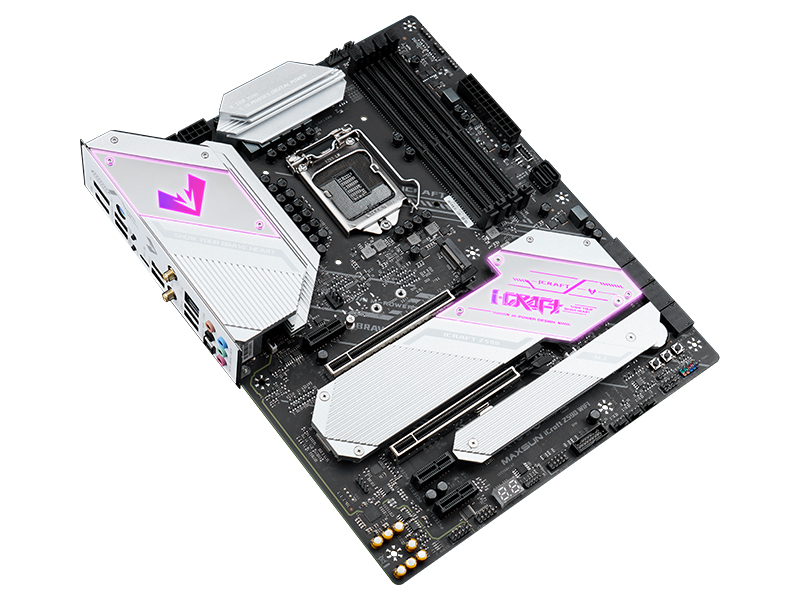

| PRODUCT SPECIFICATIONS | iCraft Z590 WiFi | |
| Chipset/Socket | Intel Z590 / LGA 1200 | |
| Form Factor | ATX (30.5*24.5cm) | |

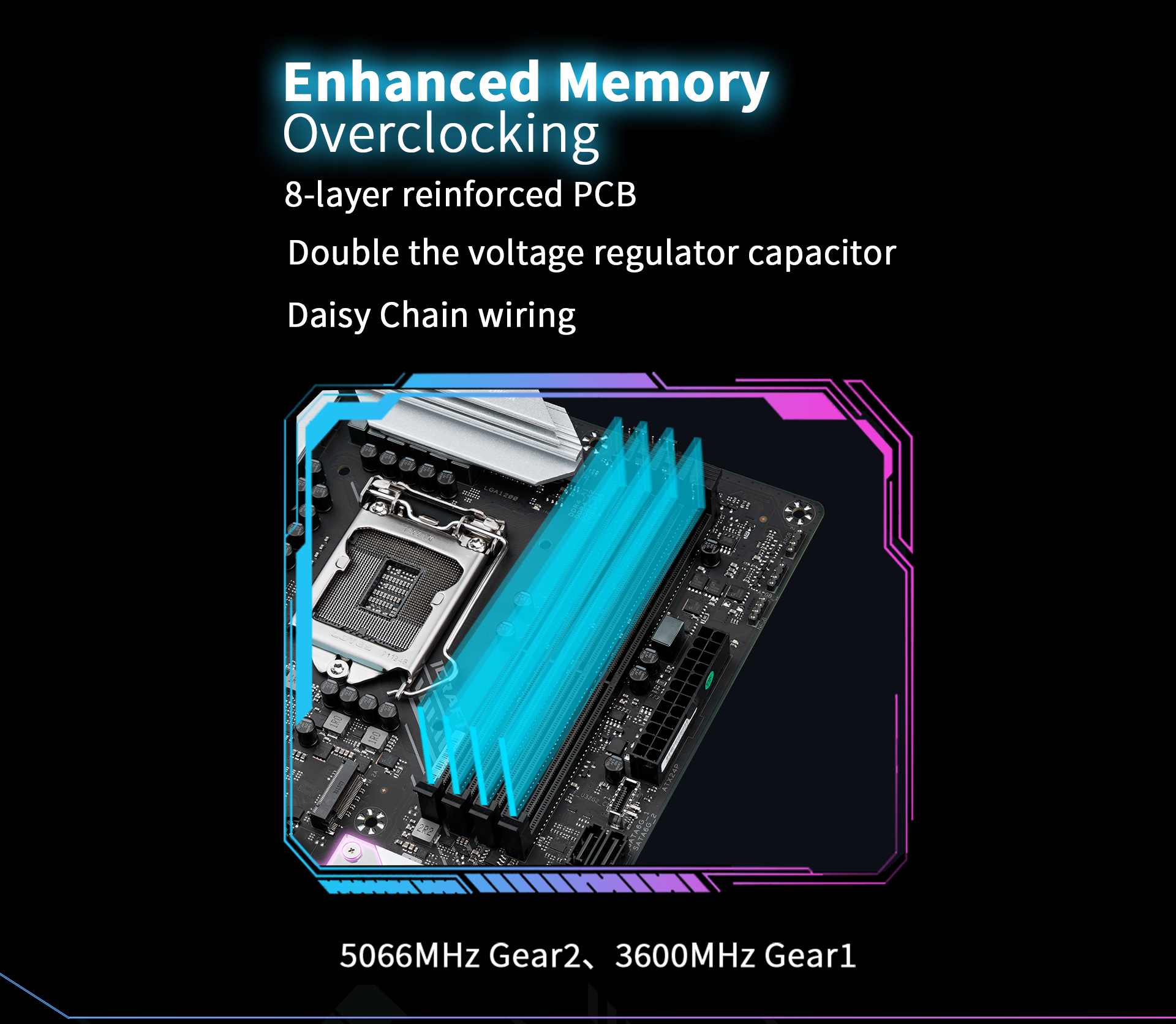

| Memory Support | Dual DDR4, 4*DIMM(OC:5066MHz) | |

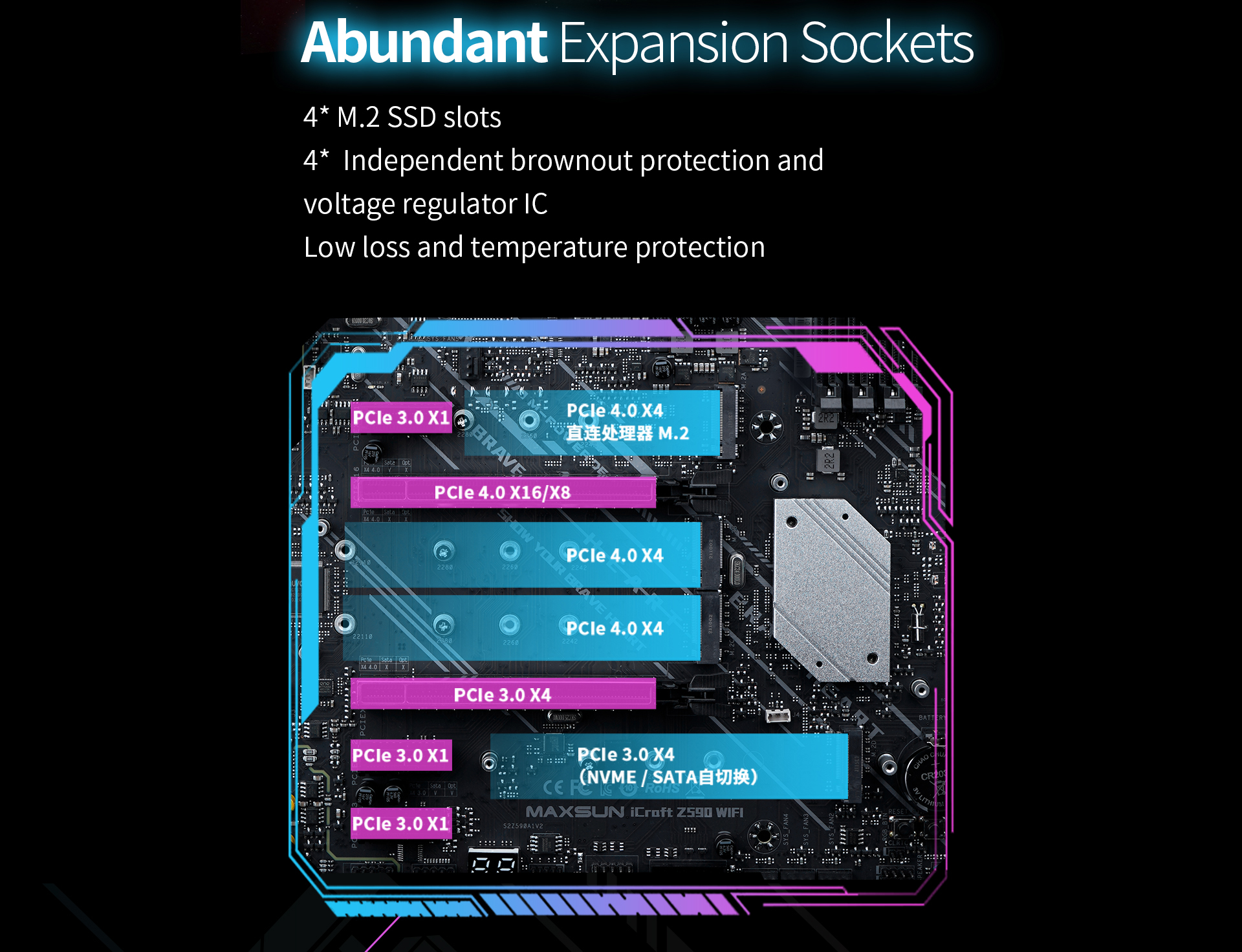

| Extensions | 1*PCIE4.0x16,1*PCIE3.0x1, 1*PCIE3.0x4, 2*PCIE3.0x1 | |

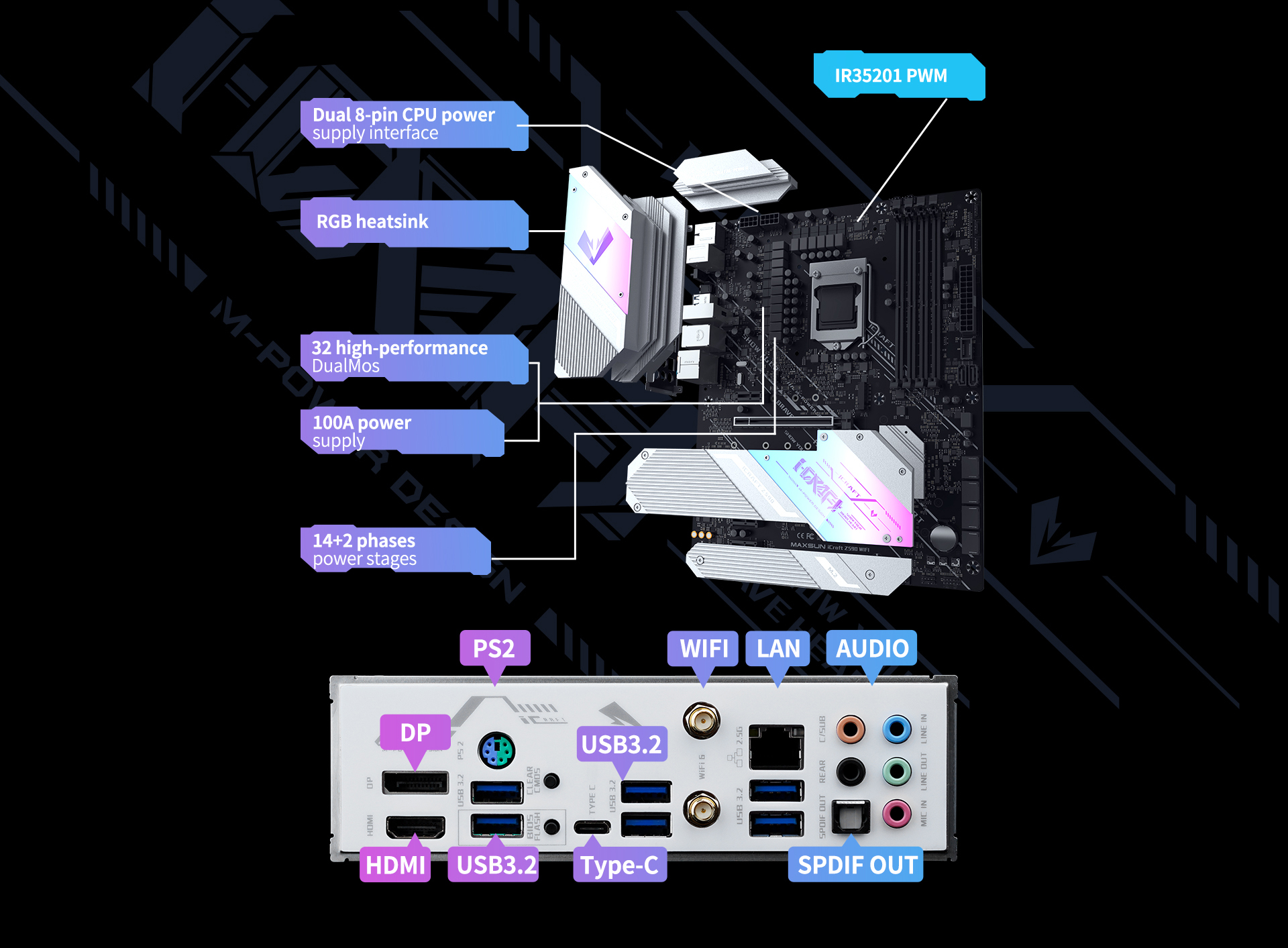

| Power Support | 16 phases power | |
| M.2 Slots | 4 | |
| SATA Interface | 6 | |
| Video | HDMI2.0, DP1.4 | |

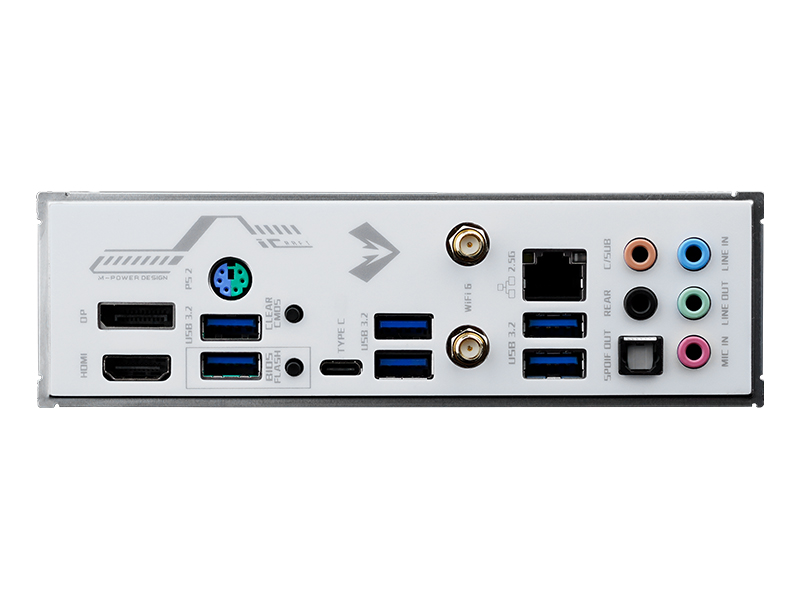

| USB(rear) | 6*USB3.2, 1*Type-C | |
| USB(front) | 1*USB3.2 PIN, 1*Type-C PIN | |

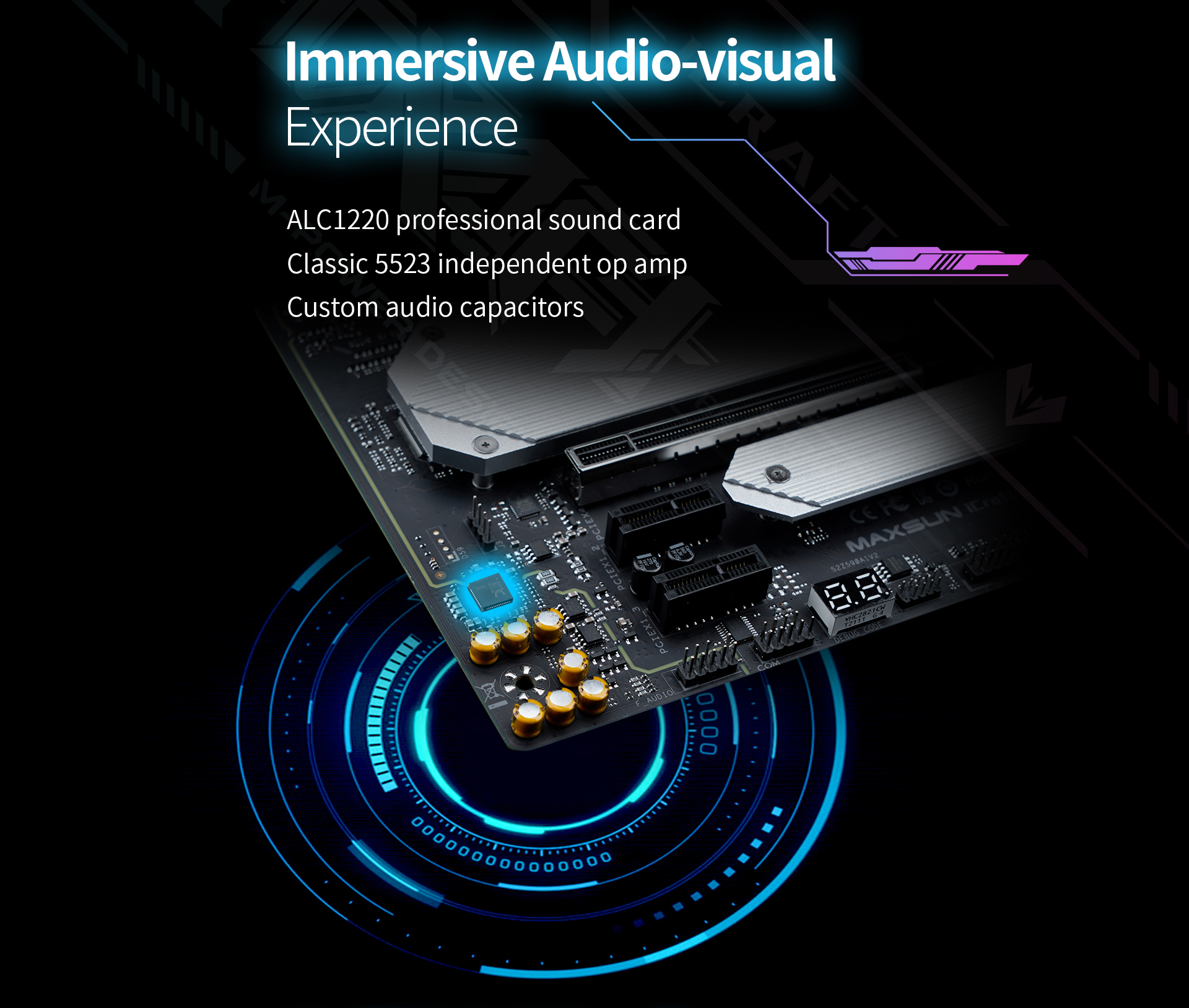

| Audio/Ethernet | 7.1 Channel Realtek ALC1220/2.5G Ethernet | |

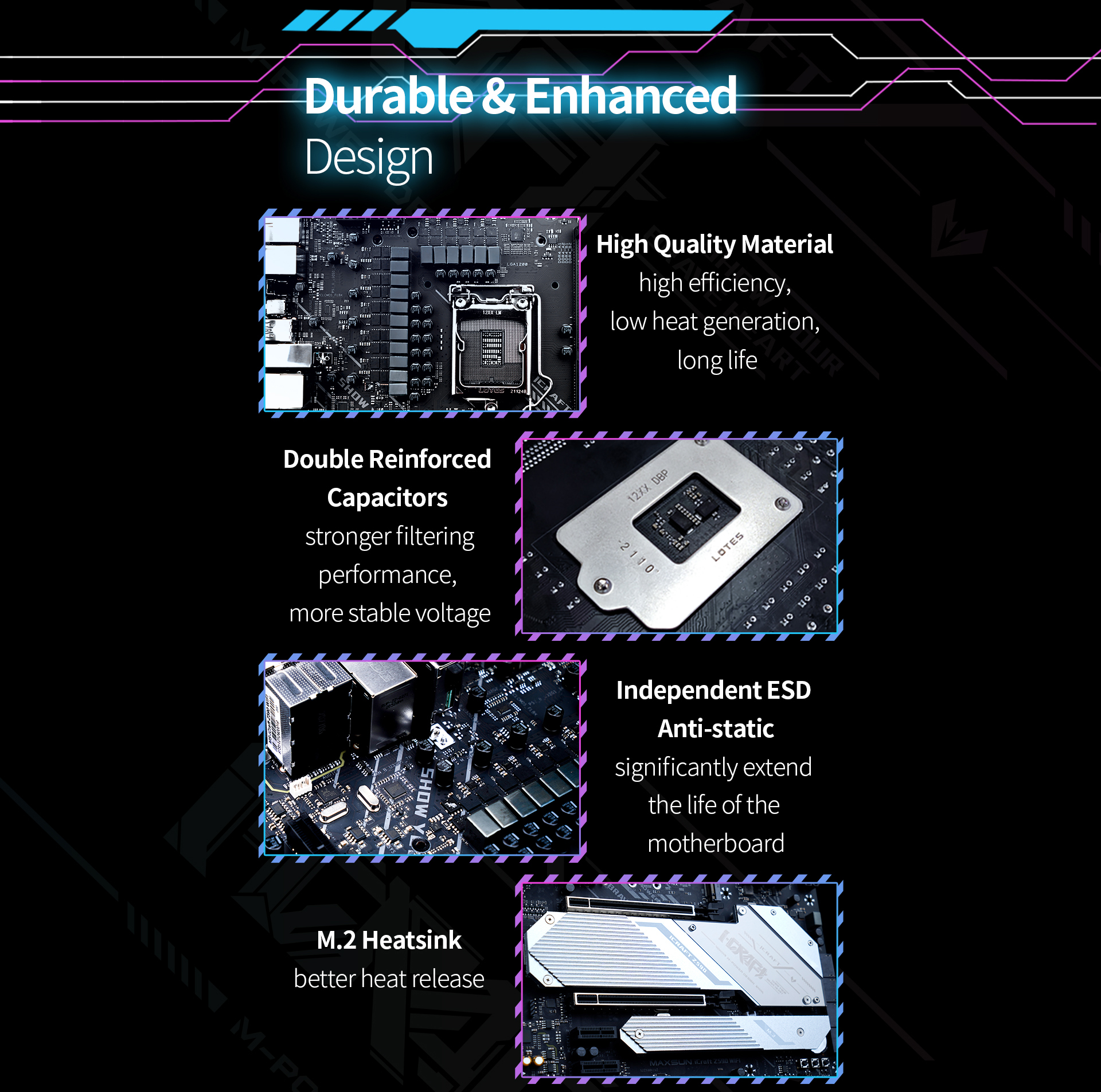

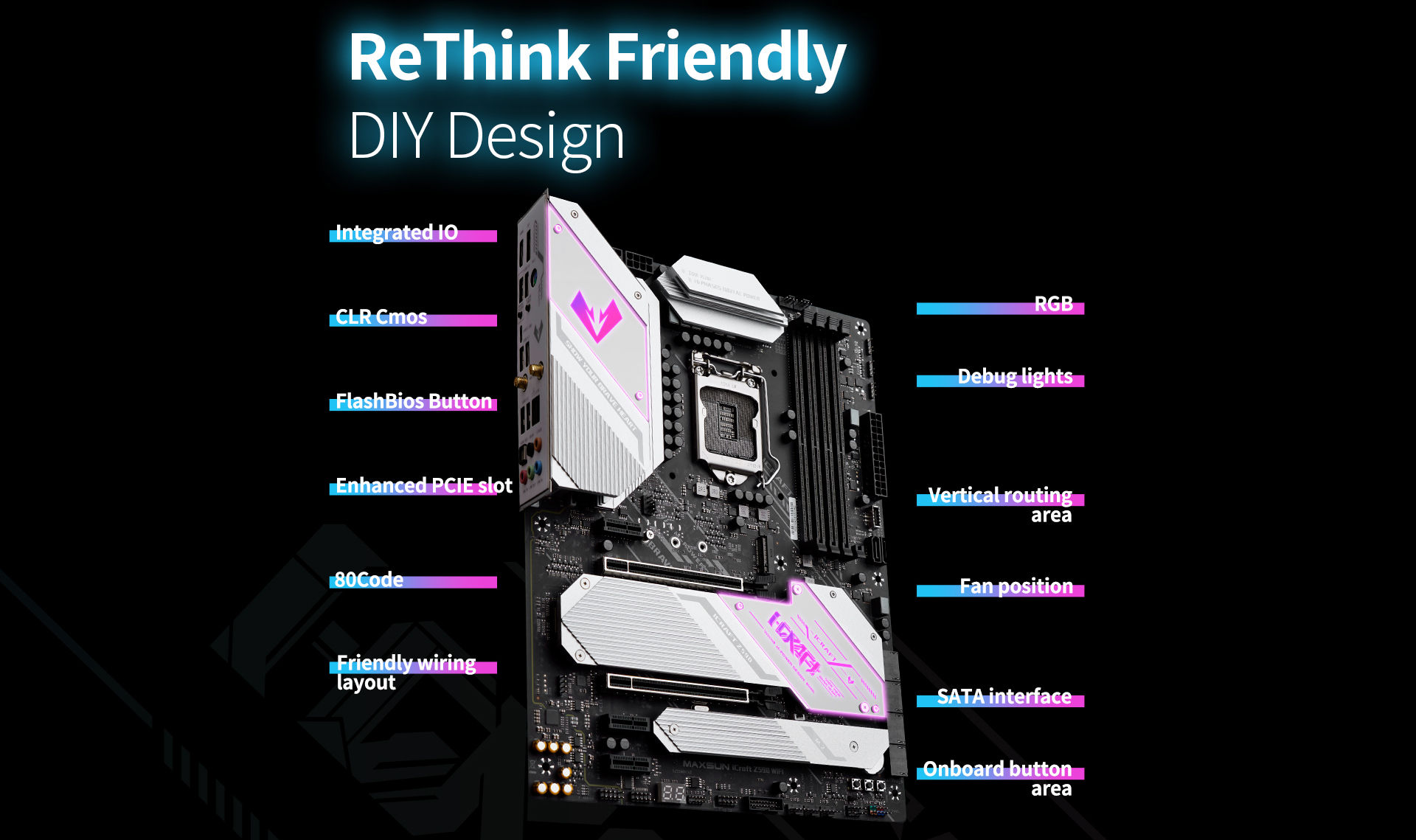

| Special Functions | Debug Light&CLR CMOS | |

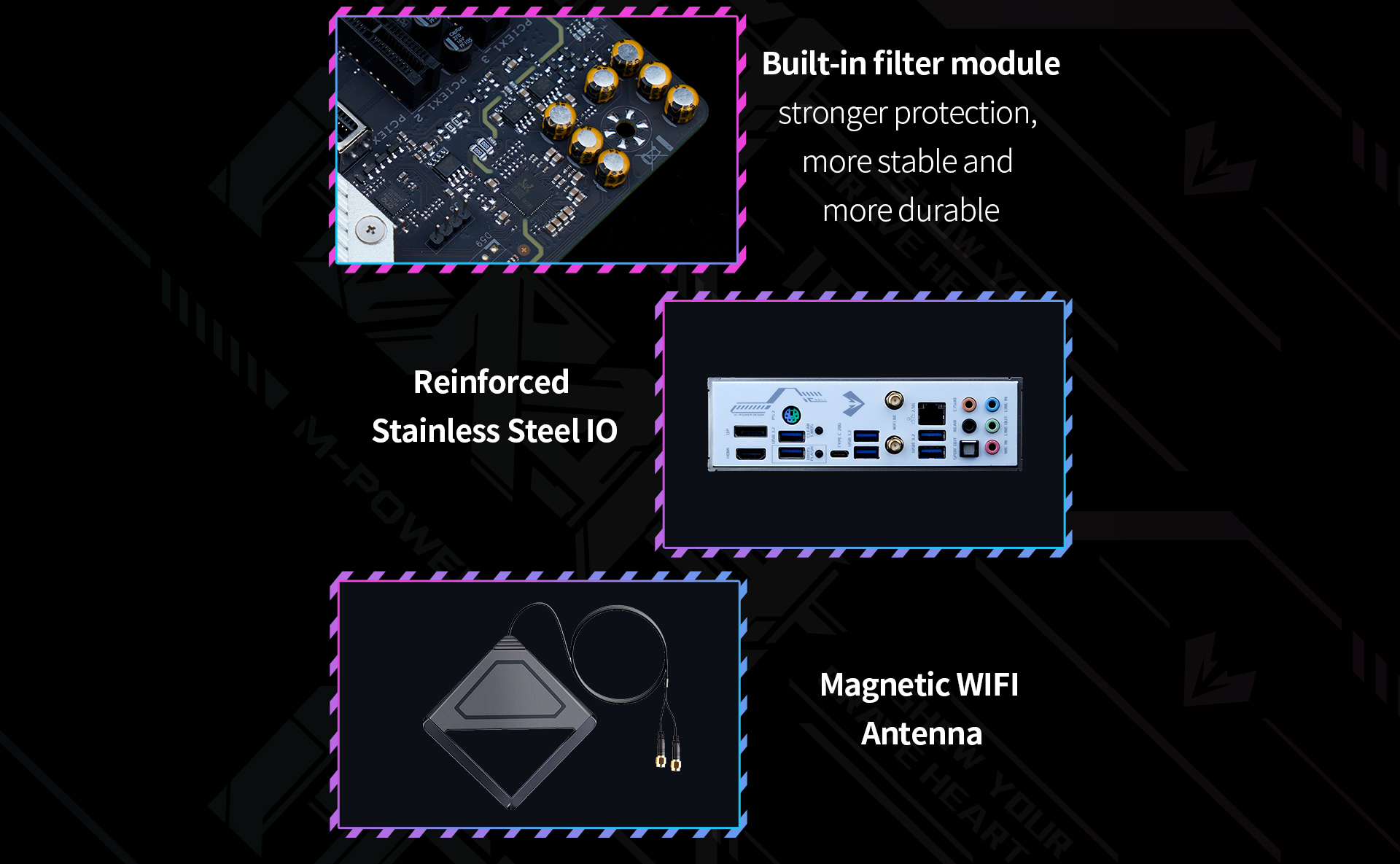

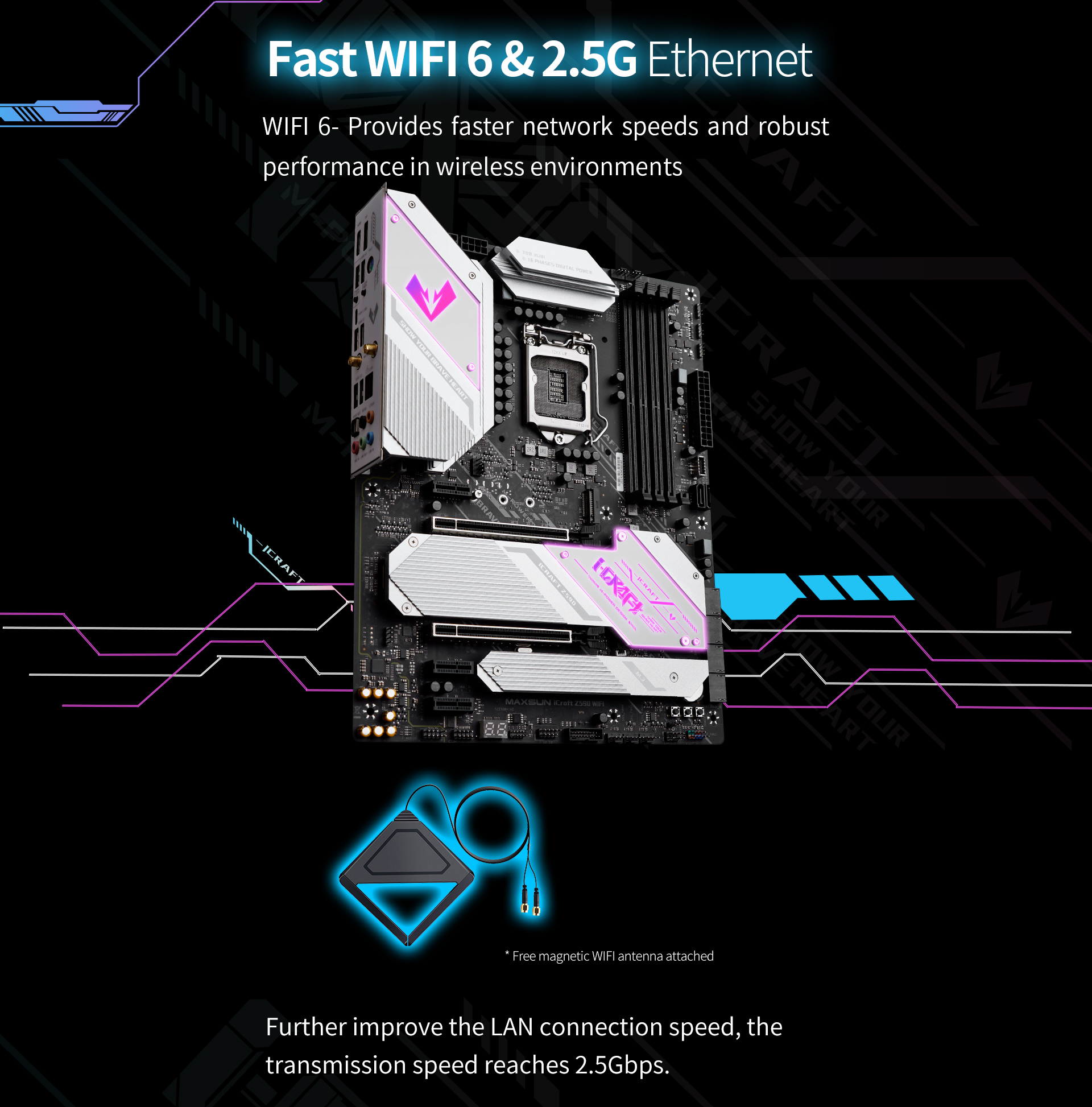

| WIFI | WIFI6(bluetooth 5.1) | |
| RGB | 2*ARGB(3Pin,5V)+1*NRGB(4Pin, 12V) | |
